TOP SAFE END OFF LINE FLAME ARRESTER

TOP SAFE END OFF LINE FLAME ARRESTER

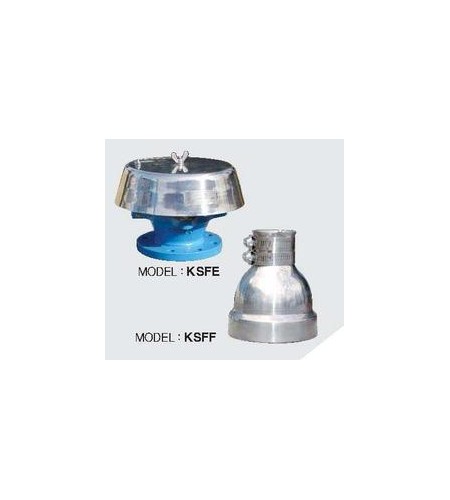

- Model : KSFE & KSFF
- Brand : TOP SAFE
- Negara Asal : KOREA
- Keterangan : TOP SAFE END OFF LINE FLAME ARRESTER, Material : Alumunium, Carbon steel, stainless steel. size : 2" ~ 12"
  gas group : II A, II B, II C. the KSFE flame arrester are designed, manufactured and tested according to API 2000 and BS 7244
  the unit allow free venting and combination with flame protection for vertical vent application. they prevent flame propagation
  by absorbing and dissipating heat using spiral wound crimped ribbon 316LSS flame cells. The KSFE unit gives the protection needed.
  for size 4" and under after ignition of the out flowing gases a fusible element melts. thee spring loaded cover automatically opens
  and the full surface of the flame arrester is exposed so that the flame arrester element will not attain the ignition temperature through
  heat absorption. housing consturuction are alumunium, cast iron and cast steel, 304SS and 316LSS. size are from 20mm through
  to 300mm. cast iron and cast steel unit are epoxy coated both inside and outside.
