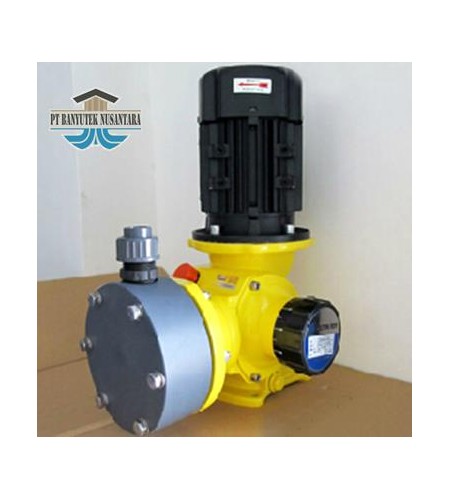

Dosing Pump Milton Roy G Series
Gambar Produk
Dosing Pump Milton Roy G Series
Update Terakhir
03-03-2016
Dilihat Sebanyak
46 kali
Lokasi
Jambi - Merangin
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Dosing Pump Milton Roy G Series
Dosing Pump Milton Roy G Series direkomendasikan untuk digunakan pada laju air hingga 500 liter per jam dan tekanan kerja hingga 12 bar. Dosing Pump Milton Roy G Series memiliki daya hisap hingga 4 meter dan dapat digunakan untuk semua jenis bahan kimia serta dapat beroperasi secara terus menerus selama 24 jam. Dosing Pump Milton Roy G Series memilki mekanisme penyesuaian stroke yang variabel dan tebuat dari bahan material PVC. Dosing Pump Milton Roy G Series dapat digunakan untuk injeksi besi klorida, aluminium sulfat, WAC, polimer, asam sulfat, natrium hidroksida, nitrat, asam fluorida, dll. PT Banyutek Nusantara menyediakan Dosing Pump Milton Roy G Series untuk Type GM.
 |
 |
1. Type GM 0002
- Capacity : 2 - 2,25 Lph
- Pressure : 12 bar
- Stroke Lenght : 4 mm
- Stroke Speed : 36 spm
- Liquid End : PVC
- Connection : 1/4" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
2. Type GM 0005
- Capacity : 4 - 4,5 Lph
- Pressure : 12 bar
- Stroke Lenght : 4 mm
- Stroke Speed : 72 spm
- Liquid End : PVC
- Connection : 1/4" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
3. Type GM 0010
- Capacity : 8 - 9 Lph
- Pressure : 12 bar
- Stroke Lenght : 4 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/4" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
4. Type GM 0025
- Capacity : 22 - 25 Lph
- Pressure : 12 bar
- Stroke Lenght : 6 mm
- Stroke Speed : 72 spm
- Liquid End : PVC
- Connection : 1/4" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
5. Type GM 0050
- Capacity : 44 - 50 Lph
- Pressure : 10 bar
- Stroke Lenght : 6 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/4" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
6. Type GM 0090
- Capacity : 77 - 85 Lph
- Pressure : 7 bar
- Stroke Lenght : 6 mm
- Stroke Speed : 72 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
7. Type GM 0120
- Capacity : 108 - 120 Lph
- Pressure : 7 bar
- Stroke Lenght : 8 mm
- Stroke Speed : 72 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
8. Type GM 0170
- Capacity : 153 - 170 Lph
- Pressure : 7 bar
- Stroke Lenght : 6 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 90 W/3 phase/1440 rpm/380 V
9. Type GM 0240
- Capacity : 215 - 240 Lph
- Pressure : 7 bar
- Stroke Lenght : 8 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 120 W/3 phase/1440 rpm/380 V
10. Type GM 0330
- Capacity : 290 - 315 Lph
- Pressure : 5 bar
- Stroke Lenght : 8 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 120 W/3 phase/1440 rpm/380 V
11. Type GM 0400
- Capacity : 368 - 400 Lph
- Pressure : 5 bar
- Stroke Lenght : 10 mm
- Stroke Speed : 144 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 250 W/3 phase/1440 rpm/380 V
12. Type GM 0500
- Capacity : 460 - 500 Lph
- Pressure : 5 bar
- Stroke Lenght : 10 mm
- Stroke Speed : 180 spm
- Liquid End : PVC
- Connection : 1/2" inch
- Adjustment : Manual
- Motor Power : 250 W/3 phase/1440 rpm/380 V
