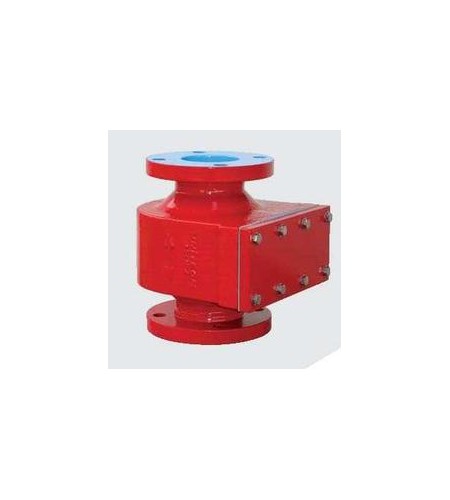

TOP SAFE EXPLOSION PROOF IN LINE FLAME ARRESTER

TOP SAFE EXPLOSION PROOF IN LINE FLAME ARRESTER

- Model : KSFH
- Brand : TOP SAFE
- Negara Asal : KOREA
- Keterangan : KSFH material : Alumunium, carbon steel, stainless steel, size : 2 " ~ 24 ", Gas Group : II A, II B, II C, benefits - meet USCG
  IMO MSC/circ, 667 & EN 12874 requirement - design for explosion and deflagration proof - maximum capacity & minimum pressure drop
  quick and easy removable element very easy cleaning and maintenance - available vertical & horizontal installation - high quality corrosion
  and chemical resistance the model KSFH inline flame arrester is designed, manufactured and tested according APL 2000 british standard
  specification code BS 7244, EN 12874 and FM ( factory mutual) approved, the unit are passive devices with no moving part. they prevent the
  propagation of flame from the exposed side of the unit to the protected side by the use of A 316L stainless steel crimped metal ribon type
  flame cell element. this contruction produces a matrix of uniform opening that are carefuly constructed to quench the flame by absorbing
  the heat. the KSFH flame arrester have specially designed heat transfer characteristic for slow moving flame and low medium pressure
  fronts. the standard flame cell is suitable for NEC group D or IEA II A gases. cells for other gas group are avialable as additional extras.
  the flame arrester are avialable with either alumunium, nodular iron, cast steel, 304 ss, 316 ss, and 316 lss housing are supplied epoxy
  coated.
