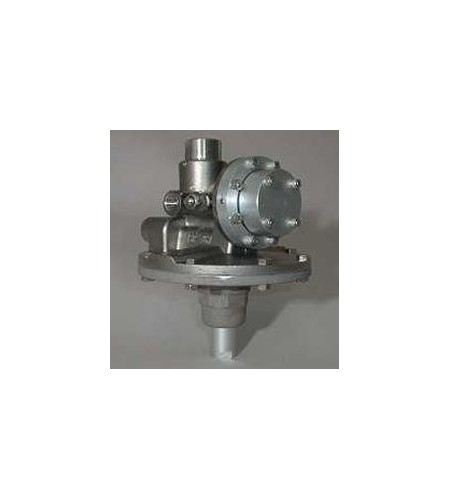

GAS SEAL UNIT - GU-10 SERIES - KANEKO SANGYO

GAS SEAL UNIT - GU-10 SERIES - KANEKO SANGYO

- Model : GU 10 SERIES
- Brand : KANEKO SANGYO
- Negara Asal : JEPANG
- Keterangan : GAS SEAL UNIT MODEL : GU-10 SERIES Brand : Kaneko Sangyo Co., Ltd [ STANDARD SPECIFICATIONS] 1) NOMINAL PIPE SIZE - PRIMARY : Rc3/ 8 - SECONDARY : Rc3/ 4----Tank side - CONTROL PIPE : Rc1/ 2--Tank side 2) PRIMARY PRESSURE - 0.1--0.7 MPa - Normal control cannot be effected when primary pressure becomes less than 0.1 MPa. 3) SET PRESSURE - 0.1--3 kPa( 10--300 mmAq) - Fluctuation of primary pressure causes the pressure setting to vary. As the main valve is pilot operated, a completely sealed tank stabilizes when internal pressure becomes about 0.05-0.1 kPa higher than the setting. FLOW RATE : See References. [ GU-10 SERIES] - Most suited for dust proofing of storage tanks for pure water and other substances liable to be degraded by the entrance of dust. - Most suited for shutting off active gases from the contents of storage tanks for foodstuffs, medicines, petroleum products, etc., liable to be degraded by contact with air. - Used to seal inert gases in storage tanks for flammables and most suited for prevention of explosion and fire. [ DESIGNATION] - Product designations are determined according to specifications. - Refer to the explanation of designation for details.
