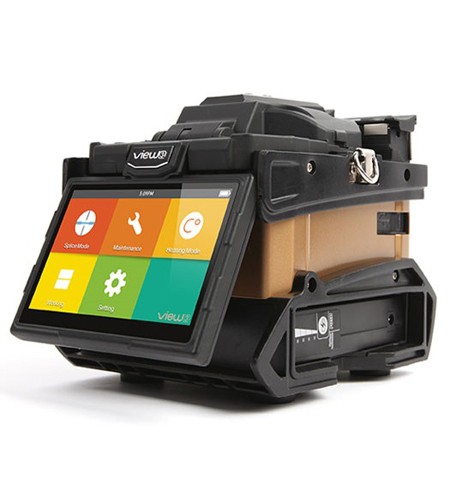

Fusion Splicer Inno View 3

Fusion Splicer Inno View 3, aktif clad-alignment splicer dengan tingkat pembesaran fiber gambar tertinggi di dunia. Inno View 3 memiliki 5 inci resolusi tinggi warna LCD layar sentuh dengan user-friendly GUI intuitif (Graphic User Interface) menawarkan gambar serat besar dan jelas kepada pengguna. Dengan double-menekan layar, pengguna dapat memperbesar & keluar gambar untuk perbesaran tertinggi di dunia sampai 520x. Selain itu, 3 lampu LED memberikan kondisi sambatan terang untuk pengguna yang bekerja di bawah lingkungan gelap. Inno View 3 adalah splicer berpakaian-keselarasan standar industri baru aktif dalam industri telekomunikasi.

Fitur Inno View 3
• Active V-Groove Clad Penyelarasan Metode Penyambungan
• Pembesaran Tertinggi di Dunia dan Resolusi
• 5 "Resolusi Tinggi Color LCD Touch Screen
• User-friendly Cerdas GUI (Graphic User Interface)
• Double Tap untuk Zoom in & out
• Dilepas Holder SOC dan Pemanas Oven
• Baterai Kapasitas Tinggi
• 3 LED Cerah dan Illuminated keypads
Untuk Dark Lingkungan
• Clamp keramik untuk Peningkatan Daya Tahan
• Mudah Ganti Elektroda
• Aling-aling
• Harsh Kondisi Cuaca Kemampuan beradaptasi
• Berat 1.95kg (tanpa baterai)

Specifications Inno View 3

Model	View 3
Dimension	143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
Weight	2.31KG (with battery) / 1.95KG (without battery)
Number of Fiber	Single
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor Cable
Cleaved Length	Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter	80~150 μm
Splicing Mode	Max 128 modes
Heating Mode	Max 32 modes
Typical Splice Loss	SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB(ITU-T Standard)
Return Loss	>> 60 dB
Lighting	3 White LEDs
Splicing Time	Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss	Available
Protection Sleeve Length	20~60 mm
Heating Time	FP-03 typical heating time: 30 sec
Results Storage	The last 2000 results
Tension Test	1.96~2.25N
Operating Condition	Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -40~80°C
Display	90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y : 520X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
No. of Splice / Heating with Battery	4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
Operating Methods	Button / Touch screen
Automatic Calibration	Automatic arc calibration by air pressure and temperature
Electrode Life	3500 arcs, can be extended by using an electrode grinder
Terminal	USB2.0 / MINI USB

The INNO View 3 Package comes with the following
• Fusion Splicer View 3
• High Precision Cleaver VF-15H
• Fiber Holder VFH-40( equipped) / FH-SOC
• SOC Heater Cover HT-SOC
• AC Adapter JS-180300
• Cooling Tray CG-22
• Electrode E-50
• Electrode Grinder EG-18
• Manual CD
• Battery Pack LBT-40
• Power Cable ACC-25
• USB Cable USB-5P
• Cigarette Lighter Cable CJ-11
• Carrying Case NBX-35
