- Rugged IP54 rating for tough outdoor conditions
- Feature packed, fully integrated, affordable
- High-sensitivity GPS receiver
- 5 megapixel autofocus camera with flash
- Long life battery for all-day use
- Lightweight and compact

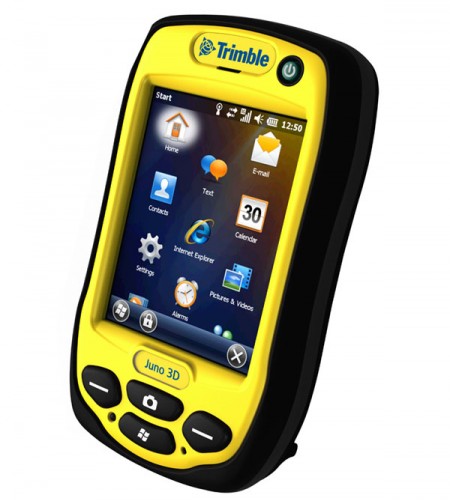

The Trimble® Juno® 3 handheld computer is an economical solution that includes an integrated GPS, digital camera, and optional cellular connectivity. Install the Farm Works™ Mobile software (sold separately) on the Juno to calculate field acreage, locate soil sample points by grid or zone, scout for pests or problem areas, or to collect important field records.
With the Trimble Juno series handheld, you are empowered for every day fieldwork with a fully integrated, GPS-based data collection system. Farmers and agribusinesses can improve their efficiency when performing GPS mapping, scouting, soil sampling, field record keeping, and other important jobs. Data is safe and secure with its redesigned shell which is resistant to dust, water, and shock.
Choose either the Juno 3B or 3D model to suit your needs:
| Juno 3B | Juno 3D | |
| Cellular voice & data | No | Yes |
| Integrated camera | 5 MP | 5 MP with Flash |
More Features and Connectivity
The next generation of the Trimble Juno series-the Juno 3B and 3D handhelds are tougher, faster, and more modern. Each Juno handheld offers the Windows® Embedded Handheld operating system which is more intuitive and easier to navigate.
Standard wireless capabilities include built-in Bluetooth®, giving you cable-free connections to peripherals such as RFID readers and barcode scanners, and the built-in cellular modem enables you to exchange data wirelessly utilizing the Connected Farm™. The Juno handheld gives you flexible connectivity methods to meet your farm business needs.
Included Features
- Windows® Embedded Handheld 6.5 Professional
- 800 MHz Samsung processor
- 256 MB RAM
- 2 GB flash memory
- 3.5 inch QVGA sunlight-readable color touch screen
- Integrated Bluetooth® v2.0 wireless technology
- Integrated 802.11b/g + WAPI wireless LAN
- Integrated 5 megapixel digital camera (Juno 3D has added LED Flash)
- Integrated GPS/SBAS1 receiver and antenna (2-5 meter accuracy)
- Integrated data and voice capable 3.75G cellular with SMS capability (Juno 3D only)
- 1 microSD (microSDHC compatible) memory card slot
- Integrated speaker and microphone
- Long-life, rechargeable, and removable Li-Ion battery
- 12-month limited warranty
Included Software
- Adobe Reader
- Microsoft® Office Mobile®, includes Excel Mobile, Word Mobile, Internet Explorer Mobile, Outlook Mobile, and PowerPoint Mobile
- Transcriber (handwriting recognition)
Included Accessories
- Rechargeable Li-Ion battery
- Stylus with lanyard
- Wrist lanyard
- USB data cable
- International AC power supply
Other Available Accessories
Trimble offers other Juno accessories that are not bundled with the Juno handheld kit, but can be purchased separately on the store. Some of these include:
- Vehicle power supply
- Vehicle mount
- Spare/replacement batteries
- Screen protectors
- External patch antenna
- More
| Physical | |
| Size | 138 mm × 79 mm × 31 cm (5.43 in × 3.11 in × 1.22 in) |
| Weight | 0.31 kg (0.69 lb) with battery |
| Electrical | |
| Processor | 800 MHz Samsung processor |
| Memory | 256 MB RAM |
| Data Storage | 2 GB |
| Expansion | microSD Card slot (microSDHC compatible) |
| Display | 8.9 cm (3.5 in) QVGA (240 x 320 pixel) resistive, sunlight readable, LED backlight |
| Audio | Built-in microphone and speaker, record and playback utilities |
| Battery | 3060 mAh lithium-ion, rechargeable in unit |
| Power | Low (no GPS, backlight ON). -- 14 hours |
| Normal (with GPS and backlight ON) . -- 10 hours | |
| I/O | USB client v2.0 compliant |
| Radios |
Bluetooth v2.0, Wi-Fi 802.11b/g |
| Digital Camera | 5 megapixel color camera with autofocus JPEG photo format, WMV video format, flash (Juno 3D only) |
| Environmental Specifications | |
| Operating Temperature | –20 ºC to +60 ºC (–4 ºF to 140 ºF) |
| Storage Temperature | –40 ºC to +70 ºC (–40 ºF to 158 ºF) |
| Humidity limit | 95% RH, non-condensing |
| Drop | 1.2 m (4 ft) drop plywood over concrete 2 drops per 6 sides at ambient temperature 23 ºC (73 ºF) |
| Tumble | 100 cycles (200 drops) x 50 cm (1.64 ft), 10 cycles/minute |
| Casing | IP54 |
| GPS | |
| Channels | 12 (L1 code only) |
| Integrated real-time | SBAS |
| update rate | 1 Hz |
| Time to first fix | 30 seconds (typical) |
| Protocols | SiRF, NMEA-0183 |
| Accuracy After Differential Correction | |
| Code Postprocessed | 2–5 m |
| Real-time (SBAS) | 2–5 m |
- 1x Main unit
- 1x USB Data cable
- 1x Wrist lanyard
- 1x AC power supply
- 1x Stylus with lanyard
- 1x Li-ion battery
- Bonus : 1x External patch antenna
