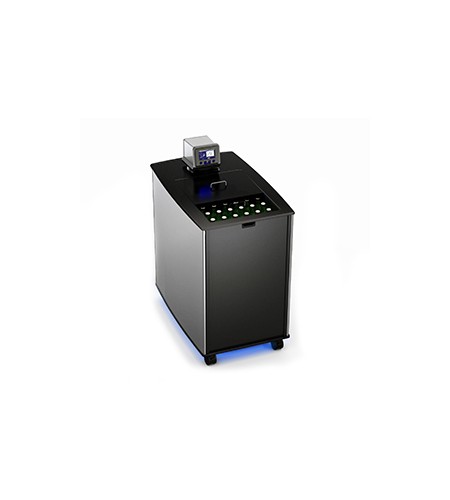

Polyscience PP75R-20 75 Liter Refrigerated Circulating Bath
Gambar Produk
Polyscience PP75R-20 75 Liter Refrigerated Circulating Bath
Update Terakhir
07-04-2016
Dilihat Sebanyak
58 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience PP75R-20 75 Liter Refrigerated Circulating Bath
Key Specifications
| Description |
75 L, Ref. Circulator |
|---|---|
| Controller Type |
Performance Programmable
|
| Display |
4.3" SmartTouch Touchscreen
|
| Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, Remote On/Off, External Temperature Probe
|
| Languages Supported |
11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
|
| Time/Temperature Programs & Steps |
Open Mode: No restriction on the number of programs or steps
|
| Swivel 180 Rotating Controller |
Yes
|
| Working Temperature Range °C |
-20° to 100°
|
| Temperature Stability °C |
±0.005°
|
| Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable
|
| Temperature Calibration Capability |
10-point
|
| Working Access (L x W x D) (cm) |
54.9 x 39.8 x 23.9 cm
|
| Pump Type |
Pressure/Suction
|
| Flammability Class (DIN 12876-1) |
III (FL)
|
Key Features
- OpenMode time/temperature programming (no restrictions on number of programs or steps)
- Intuitive 4.3" (10.9 cm) SmartTouch™ display
- 11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS232/485, remote on/off and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable home screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 10-point calibration capability
- Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW™ Virtual Instrument, iPhone® application download)
- Available with DeviceNet/CANbus, Modbus and Profibus options
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
-4° to 212°
|
|---|---|
| Working Temperature Range °C |
-20° to 100°
|
| Nominal Cooling Capacity @ +20C (W) |
1400
|
| Reservoir Capacity (gallons) |
19.81
|
| Reservoir Capacity (liters) |
75
|
| Reservoir/Tank Material |
Stainless Steel
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| Cleanable Air Filter |
Yes
|
| Working Access (L x W x D) (inches) |
21.6 x 15.7 x 9.4 in
|
| Working Access (L x W x D) (cm) |
54.9 x 39.8 x 23.9 cm
|
| Temperature Stability °F |
±0.01°
|
| Temperature Stability °C |
±0.005°
|
| Display |
4.3" SmartTouch Touchscreen
|
| Display Resolution (Set) |
0.01
|
| Display Resolution (Read) |
0.001
|
| Pump Type |
Pressure/Suction
|
| Pump Speed |
Variable
|
| Process Connections |
1/4" (F) NPT
|
| Flammability Class (DIN 12876-1) |
III (FL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| WhisperCool Environmental Control Technology |
Yes
|
| Cool Command Refrigeration Technology |
Yes
|
| Reservoir Drain |
Yes
|
| Included Software | PolyTemp Viewer, TDMS file viewer, USB driver, PolyScience LabVIEW Virtual Instrument & Functions, Time/Temperature Program Generator, PolyTemp Remote iPhone application |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
35.8 x 22.4 x 42.1 in
|
| Overall Dimensions (L x W x H) (cm) |
90.9 x 56.9 x 107 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
200.0
|
| Shipping Weight (kilograms) |
90.6
|
| Catalog Page Number |
74
|
60 Hz Only
| Part Number |
PP75R-20-A13D
|
|---|---|
| Maximum Pressure (psi) |
4.3
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
5.30
|
| Maximum Pressure Flow Rate (l/min) |
20.1
|
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Cooling Capacity @ -20°C (W) |
250
|
| Cooling Capacity @ 0°C (W) | 800 |
| Cooling Capacity @ +20°C (W) |
1400
|
| Cooling Capacity @ +100°C (W) |
1400
|
| Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16"
|
| Electrical Requirements (VAC/Hz/Ph/A) |
208-240/50/60/1/13
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
PP75R-20-A12E
|
|---|---|
| Maximum Pressure (psi) |
3.6
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
4.40
|
| Maximum Pressure Flow Rate (l/min) |
16.7
|
| Maximum Suction Flow Rate (gpm) |
3.2
|
| Maximum Suction Flow Rate (l/min) |
12.2
|
| Cooling Capacity @ -20°C (W) |
250
|
| Cooling Capacity @ 0°C (W) |
800
|
| Cooling Capacity @ +20°C (W) |
1400
|
| Cooling Capacity @ +100°C (W) |
1400
|
| Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/13
|
| Regulatory Approvals |
CE
|
