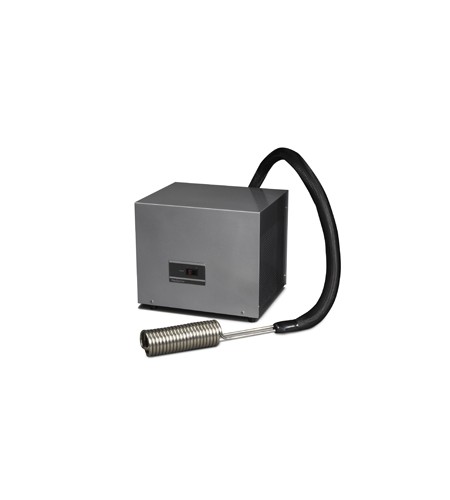

Polyscience IP-35 Low Temperature Cooler, 3" Rigid Coil Probe
Perhatian!
Spesifikasi Polyscience IP-35 Low Temperature Cooler, 3" Rigid Coil Probe
Key Specifications
| Description |
Immersion Probe-35, 3" Rigid Coil |
|---|---|
| Working Temperature Range °C |
-35° to +40°
|
| Temperature Control (°C) |
Fixed at -35°
|
Key Features
- Continuous cooling to temperatures as low as -100°C
- Designed to run at maximum cooling
- An economical alternative to dry ice or liquid nitrogen
- Excellent for trapping applications, freeze drying, and rapidly cooling small volumes of liquids
Common Specifications
| Working Temperature Range °F |
-31° to +104°
|
|---|---|
| Working Temperature Range °C |
-35° to +40°
|
| Temperature Control (°F) |
Fixed at -31°
|
| Temperature Control (°C) |
Fixed at -35°
|
| Nominal Cooling Capacity @ +20C (W) |
1000
|
| Maximum Ambient Temperature °F |
86°
|
| Maximum Ambient Temperature °C |
30°
|
| Overall Dimensions (L x W x H) (inches) |
17 x 14 x 14 in
|
| Overall Dimensions (L x W x H) (cm) |
43.2 x 35.6 x 35.6 cm
|
| Refrigerant |
R134a
|
| Immersion Probe Type |
Rigid Coil
|
| Probe Diameter (inches) |
3
|
| Probe Diameter (cm) |
7.62
|
| Probe Length (inches) |
Coil: 9 / Exposed: 17
|
| Probe Length (cm) |
Coil: 22.9 / Exposed: 43.2
|
| Flexible Hose Diameter (inches) |
1.5
|
| Flexible Hose Diameter (cm) |
3.81
|
| Flexible Hose Length (feet) |
4
|
| Flexible Hose Length (m) |
1.22
|
| Shipping Weight (pounds) |
78.0
|
| Shipping Weight (kilograms) |
35.4
|
| Catalog Page Number |
114-115
|
60 Hz Only
| Part Number |
P40N7A101B
|
|---|---|
| Cooling Capacity @ -30°C (W) | 117 |
| Cooling Capacity @ -20°C (W) |
164
|
| Cooling Capacity @ -10°C (W) | 273 |
| Cooling Capacity @ 0°C (W) | 454 |
| Cooling Capacity @ +10°C (W) | 757 |
| Cooling Capacity @ +20°C (W) |
1081
|
| Cooling Capacity @ +30°C (W) | 1298 |
| Cooling Capacity @ +40°C (W) | 1427 |
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/5
|
50 Hz Only
| Part Number |
P40N7A102E
|
|---|---|
| Cooling Capacity @ -30°C (W) | 100 |
| Cooling Capacity @ -20°C (W) |
140
|
| Cooling Capacity @ -10°C (W) | 233 |
| Cooling Capacity @ 0°C (W) |
388
|
| Cooling Capacity @ +10°C (W) | 647 |
| Cooling Capacity @ +20°C (W) |
924
|
| Cooling Capacity @ +30°C (W) | 1109 |
| Cooling Capacity @ +40°C (W) | 1220 |
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/2.5
|
| Regulatory Approvals |
CE
|
