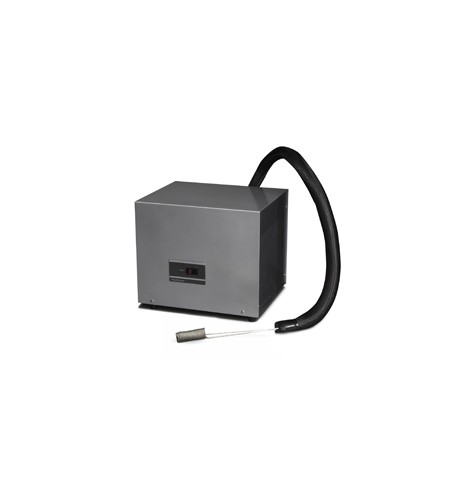

Polyscience IP-35 Low Temperature Cooler, 1.75" Rigid Coil Probe
Perhatian!
Spesifikasi Polyscience IP-35 Low Temperature Cooler, 1.75" Rigid Coil Probe
Key Specifications
| Description |
Immersion Probe-35, 1.75" Rigid Coil |
|---|---|
| Working Temperature Range °C |
-35° to +40°
|
| Temperature Control (°C) |
Fixed at -35°
|
Key Features
- Continuous cooling to temperatures as low as -100°C
- Designed to run at maximum cooling
- An economical alternative to dry ice or liquid nitrogen
- Excellent for trapping applications, freeze drying, and rapidly cooling small volumes of liquids
Common Specifications
| Working Temperature Range °F |
-31° to +104°
|
|---|---|
| Working Temperature Range °C |
-35° to +40°
|
| Temperature Control (°F) |
Fixed at -31°
|
| Temperature Control (°C) |
Fixed at -35°
|
| Maximum Ambient Temperature °F |
86°
|
| Maximum Ambient Temperature °C |
30°
|
| Overall Dimensions (L x W x H) (inches) |
17 x 14 x 14 in
|
| Overall Dimensions (L x W x H) (cm) |
43.2 x 35.6 x 35.6 cm
|
| Refrigerant |
R134a
|
| Immersion Probe Type |
Rigid Coil
|
| Probe Diameter (inches) |
1.75
|
| Probe Diameter (cm) |
4.44
|
| Probe Length (inches) |
Coil: 7 / Exposed: 16.5
|
| Probe Length (cm) |
Coil: 17.8 / Exposed: 41.9
|
| Flexible Hose Diameter (inches) |
1.5
|
| Flexible Hose Diameter (cm) |
3.81
|
| Flexible Hose Length (feet) |
4
|
| Flexible Hose Length (m) |
1.22
|
| Shipping Weight (pounds) |
76.0
|
| Shipping Weight (kilograms) |
34.0
|
| Catalog Page Number |
114-115
|
60 Hz Only
| Part Number |
P35N5A101B
|
|---|---|
| Cooling Capacity @ -30°C (W) | 106 |
| Cooling Capacity @ -20°C (W) |
152
|
| Cooling Capacity @ -10°C (W) | 253 |
| Cooling Capacity @ 0°C (W) | 421 |
| Cooling Capacity @ +10°C (W) | 703 |
| Cooling Capacity @ +20°C (W) |
1004
|
| Cooling Capacity @ +30°C (W) | 1205 |
| Cooling Capacity @ +40°C (W) | 1326 |
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/5
|
50 Hz Only
| Part Number |
P35N5A102E
|
|---|---|
| Cooling Capacity @ -30°C (W) | 91 |
| Cooling Capacity @ -20°C (W) |
130
|
| Cooling Capacity @ -10°C (W) | 216 |
| Cooling Capacity @ 0°C (W) |
360
|
| Cooling Capacity @ +10°C (W) | 601 |
| Cooling Capacity @ +20°C (W) |
858
|
| Cooling Capacity @ +30°C (W) | 1030 |
| Cooling Capacity @ +40°C (W) | 1133 |
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/2.5
|
| Regulatory Approvals |
CE
|
