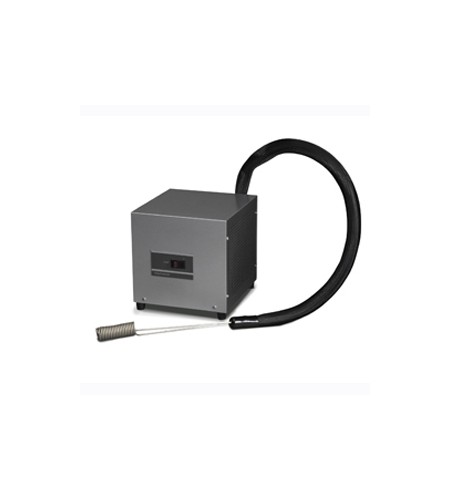

Polyscience IP-60RC Low Temperature Cooler, 1.5" Rigid Coil Probe
Perhatian!
Spesifikasi Polyscience IP-60RC Low Temperature Cooler, 1.5" Rigid Coil Probe
Key Specifications
| Description |
Immerson Probe-60, 1.5" Rigid Coil |
|---|---|
| Working Temperature Range °C |
-60° to -20°
|
| Temperature Control (°C) |
Fixed at -60°
|
Key Features
- Continuous cooling to temperatures as low as -100°C
- Designed to run at maximum cooling
- An economical alternative to dry ice or liquid nitrogen
- Excellent for trapping applications, freeze drying, and rapidly cooling small volumes of liquids
Common Specifications
| Working Temperature Range °F |
-76° to -4°
|
|---|---|
| Working Temperature Range °C |
-60° to -20°
|
| Temperature Control (°F) |
Fixed at -76°
|
| Temperature Control (°C) |
Fixed at -60°
|
| Maximum Ambient Temperature °F |
86°
|
| Maximum Ambient Temperature °C |
30°
|
| Overall Dimensions (L x W x H) (inches) |
11 x 10 x 9 in
|
| Overall Dimensions (L x W x H) (cm) |
27.9 x 25.4 x 22.9 cm
|
| Refrigerant |
R404A & R508B
|
| Immersion Probe Type |
Rigid Coil
|
| Probe Diameter (inches) |
1.5
|
| Probe Diameter (cm) |
3.81
|
| Probe Length (inches) |
Coil: 4 / Exposed: 15
|
| Probe Length (cm) |
Coil: 10.2 / Exposed: 38.1
|
| Flexible Hose Diameter (inches) |
1.5
|
| Flexible Hose Diameter (cm) |
3.81
|
| Flexible Hose Length (feet) |
4
|
| Flexible Hose Length (m) |
1.22
|
| Shipping Weight (pounds) |
49.0
|
| Shipping Weight (kilograms) |
22.0
|
| Catalog Page Number |
114-115
|
60 Hz Only
| Part Number |
P60N2A101B
|
|---|---|
| Cooling Capacity @ -60°C (W) |
0
|
| Cooling Capacity @ -40°C (W) |
100
|
| Cooling Capacity @ -30°C (W) | 125 |
| Cooling Capacity @ -20°C (W) |
150
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/5
|
50 Hz Only
| Part Number |
P60N2A102E
|
|---|---|
| Cooling Capacity @ -60°C (W) |
0
|
| Cooling Capacity @ -30°C (W) | 104 |
| Cooling Capacity @ -20°C (W) |
125
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/2.5
|
| Regulatory Approvals |
CE
|
