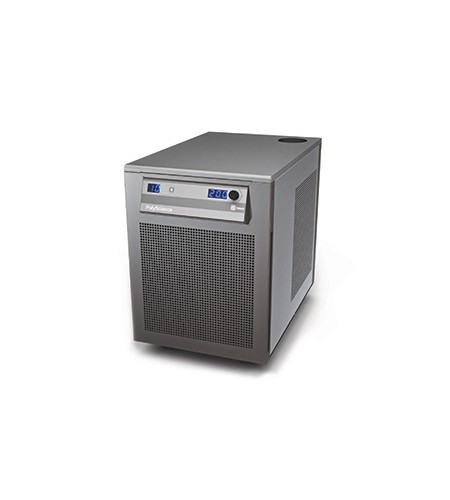

Polyscience 6800P 1.5 HP DuraChill® Chiller, Positive Displacement Pump; Air-Cooled
Perhatian!
Spesifikasi Polyscience 6800P 1.5 HP DuraChill® Chiller, Positive Displacement Pump; Air-Cooled
Key Specifications
| Description |
1.5 HP Chiller, Positive Displacement Pump; Air-Cooled |
|---|---|
| Display |
LED
|
| Connectivity |
Optional: RS232, RS485
|
| Working Temperature Range °C |
5° to 35°
|
| Temperature Stability °C |
±0.5°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Positive Displacement
|
Key Features
- High capacity cooling for lasers, electron microscopes, and other laboratory applications
- Small footprint conserves floor space
- Displays temperature and pressure or flow rate simultaneously
- User-adjustable temperature, pressure, and flow rate alarms
- Simple operation and maintenance
- Air- or water-cooled
- Positive displacement (PD) or turbine (T) pump; other pump options also available
Common Specifications
| Working Temperature Range °F |
41° to 95°
|
|---|---|
| Working Temperature Range °C |
5° to 35°
|
| Reservoir Capacity (gallons) |
3.5
|
| Reservoir Capacity (liters) |
13.25
|
| Reservoir/Tank Material |
Polyethylene
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±0.9°
|
| Temperature Stability °C |
±0.5°
|
| Display |
LED
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Positive Displacement
|
| Process Connections |
1/2" (F) NPT
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
30.5 x 19 x 26 in
|
| Overall Dimensions (L x W x H) (cm) |
78 x 48 x 66 cm
|
| Compressor Size (HP) |
1.5
|
| Refrigerant |
R134a
|
| Shipping Weight (pounds) |
340.0
|
| Shipping Weight (kilograms) |
154.0
|
| Catalog Page Number |
104
|
60 Hz Only
| Part Number |
6860P46A270D
|
|---|---|
| Maximum Pressure (psi) |
100.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.50
|
| Maximum Pressure Flow Rate (l/min) |
13.2
|
| Cooling Capacity @ +10°C (W) | 4420 |
| Cooling Capacity @ +20°C (W) |
5200
|
| Cooling Capacity @ +30°C (W) | 5980 |
| Heater Wattage |
1000
|
| Electrical Requirements (VAC/Hz/Ph/A) |
230/60/1/13
|
| Regulatory Approvals |
CSA, CUL, CE
|
50 Hz Only
| Part Number |
6850P46A270E
|
|---|---|
| Maximum Pressure (psi) |
83.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
2.90
|
| Maximum Pressure Flow Rate (l/min) |
11.0
|
| Cooling Capacity @ +10°C (W) | 3715 |
| Cooling Capacity @ +20°C (W) |
4371
|
| Cooling Capacity @ +30°C (W) | 5027 |
| Heater Wattage |
1000
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/13
|
| Regulatory Approvals |
CSA, CUL, CE
|
