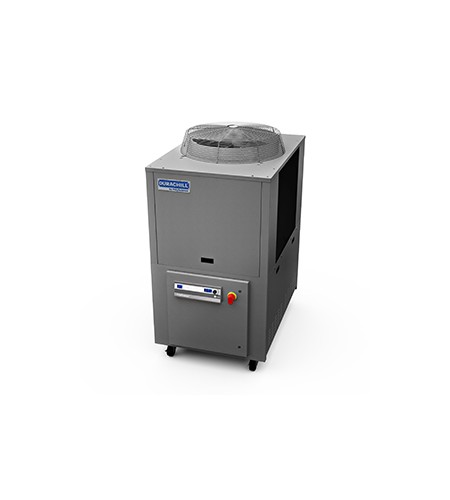

Polyscience DA500 5 HP DuraChill® Chiller; Air-Cooled
Perhatian!
Spesifikasi Polyscience DA500 5 HP DuraChill® Chiller; Air-Cooled
Key Specifications
| Description |
5 HP Chiller; Air-Cooled; Up to 16.4kW @ 35°C |
|---|---|
| Display |
LED
|
| Connectivity |
Standard: RS232; Optional: RS485
|
| Working Temperature Range °C |
0° to 30°
|
| Temperature Stability °C |
±1.11°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Contact PolyScience for Options
|
Key Features
- DuraChill® Chillers 2HP and up are not available outside of the United States
- High capacity cooling for plasma torch cutting, machine tool hydraulics, high powered lasers, and other high heat generating processes and equipment
- Displays temperature and pressure or flow rate simultaneously
- User-adjustable temperature, pressure, and flow rate alarms
- Simple operation and maintenance
- Wide variety of options available
Common Specifications
| Working Temperature Range °F |
32° to 86°
|
|---|---|
| Working Temperature Range °C |
0° to 30°
|
| Cooling Capacity |
Up to 16.4kW @ 35°C
|
| Reservoir Capacity (gallons) |
16
|
| Reservoir Capacity (liters) |
60.5
|
| Reservoir/Tank Material |
Contact PolyScience for Options
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±2.0°
|
| Temperature Stability °C |
±1.11°
|
| Display |
LED
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Contact PolyScience for Options
|
| Process Connections |
1.5" (F) NPT
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
104°
|
| Maximum Ambient Temperature °C |
40°
|
| Overall Dimensions (L x W x H) (inches) |
56 x 34.5 x 67 in
|
| Overall Dimensions (L x W x H) (cm) |
142.3 x 88 x 170.2 cm
|
| Compressor Size (HP) |
5
|
| Refrigerant |
R410a
|
| Shipping Weight (pounds) |
990.0
|
| Shipping Weight (kilograms) |
449.0
|
| Catalog Page Number |
106
|
60 Hz Only
| Electrical Requirements (VAC/Hz/Ph/A) |
Contact PolyScience for Options
|
|---|
50 Hz Only
| Electrical Requirements (VAC/Hz/Ph/A) |
Contact PolyScience for Options
|
|---|
