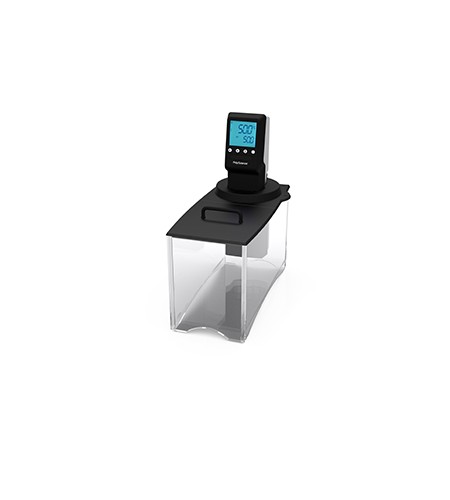

Polyscience MX11P100 11 Liter Polycarbonate Open Bath System
Perhatian!
Spesifikasi Polyscience MX11P100 11 Liter Polycarbonate Open Bath System
Key Specifications
| Description |
11 L Open Bath System |
|---|---|
| Controller Type |
MX
|
| Display |
3.25" LCD
|
| Languages Supported |
English
|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Temperature Stability °C |
±0.07°
|
| Temperature Calibration Capability |
1-point
|
| Working Access (L x W x D) (cm) |
21 x 15.6 x 20.3 cm
|
| Pump Type |
Pressure
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
Key Features
- Large, universal icon and English display
- On-screen prompts
- Single-point calibration capability
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Ambient +20° to 185°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Reservoir Capacity (gallons) |
2.91
|
| Reservoir Capacity (liters) |
11
|
| Reservoir/Tank Material |
Polycarbonate
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| Working Access (L x W x D) (inches) |
8.3 x 6.1 x 8 in
|
| Working Access (L x W x D) (cm) |
21 x 15.6 x 20.3 cm
|
| Temperature Stability °F |
±0.13°
|
| Temperature Stability °C |
±0.07°
|
| Display |
3.25" LCD
|
| Display Resolution (Set) |
0.1
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Pressure
|
| Pump Speed |
One
|
| Process Connections |
1/2" O.D. Barbed Tubes
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
16.8 x 8.2 x 17.4 in
|
| Overall Dimensions (L x W x H) (cm) |
42.7 x 20.8 x 44.1 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
21.0
|
| Shipping Weight (kilograms) |
9.5
|
| Catalog Page Number |
64-65
|
60 Hz Only
| Part Number |
MX11P100-A11B
|
|---|---|
| Maximum Pressure (psi) |
2.3
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.60
|
| Maximum Pressure Flow Rate (l/min) |
13.5
|
| Included Hardware |
Fitting Kit for External Applications
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
MX11P100-A12E
|
|---|---|
| Maximum Pressure (psi) |
1.8
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.10
|
| Maximum Pressure Flow Rate (l/min) |
11.9
|
| Included Hardware |
Fitting Kit for External Applications
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/6
|
| Regulatory Approvals |
CE
|
