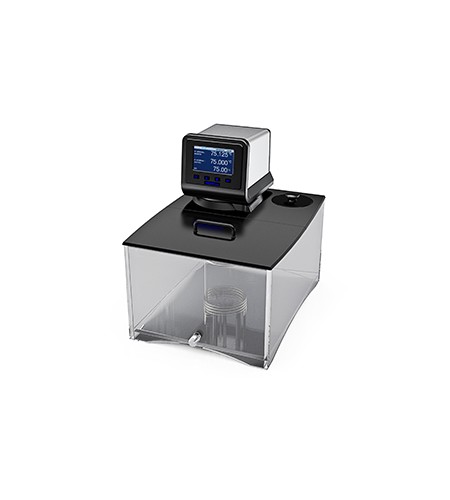

Polyscience AP23P100 23 Liter Polycarbonate Open Bath System
Gambar Produk
Polyscience AP23P100 23 Liter Polycarbonate Open Bath System
Update Terakhir
07-04-2016
Dilihat Sebanyak
56 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience AP23P100 23 Liter Polycarbonate Open Bath System
Key Specifications
| Description |
23 L Open Bath System |
|---|---|
| Controller Type |
Advanced Programmable
|
| Display |
4.3" SmartTouch Touchscreen
|
| Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
|
| Languages Supported |
6: French, German, Spanish, Chinese, Arabic, English
|
| Time/Temperature Programs & Steps |
Ten 100-step programs
|
| Swivel 180 Rotating Controller |
Yes
|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Temperature Stability °C |
±0.01°
|
| Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable
|
| Temperature Calibration Capability |
5-point
|
| Working Access (L x W x D) (cm) |
21 x 30.5 x 20.3 cm
|
| Pump Type |
Pressure/Suction
|
| External Temperature Control Capability |
Yes
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
Key Features
- Time/temperature programming (ten 100-step programs)
- Intuitive 4.3” (10.9 cm) SmartTouch display
- 6 languages: French, German, Spanish, Chinese, Arabic, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable “home” screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 5-point calibration capability
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Ambient +20° to 185°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Reservoir Capacity (gallons) |
6.08
|
| Reservoir Capacity (liters) |
23
|
| Reservoir/Tank Material |
Polycarbonate
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| Working Access (L x W x D) (inches) |
8.3 x 12 x 8 in
|
| Working Access (L x W x D) (cm) |
21 x 30.5 x 20.3 cm
|
| Temperature Stability °F |
±0.02°
|
| Temperature Stability °C |
±0.01°
|
| Display |
4.3" SmartTouch Touchscreen
|
| Display Resolution (Set) |
0.01
|
| Display Resolution (Read) |
0.001
|
| Pump Type |
Pressure/Suction
|
| Pump Speed |
Variable
|
| Process Connections |
1/4" (F) NPT
|
| External Temperature Control Capability |
Yes
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Cooling Coil |
Accessory
|
| Included Software | PolyTemp Viewer, TDMS file viewer, USB driver, Time/Temperature Program Generator, PolyTemp Remote iPhone application |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
18 x 13.6 x 16.3 in
|
| Overall Dimensions (L x W x H) (cm) |
45.7 x 34.5 x 41.3 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
51.0
|
| Shipping Weight (kilograms) |
23.1
|
| Catalog Page Number |
64-65
|
60 Hz Only
| Part Number |
AP23P100-A11B
|
|---|---|
| Maximum Pressure (psi) |
4.3
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
5.30
|
| Maximum Pressure Flow Rate (l/min) |
20.1
|
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16"
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
AP23P100-A12E
|
|---|---|
| Maximum Pressure (psi) |
3.6
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
4.40
|
| Maximum Pressure Flow Rate (l/min) |
16.7
|
| Maximum Suction Flow Rate (gpm) |
3.2
|
| Maximum Suction Flow Rate (l/min) |
12.2
|
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
| Heater Wattage |
2200
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10
|
| Regulatory Approvals |
CE
|
