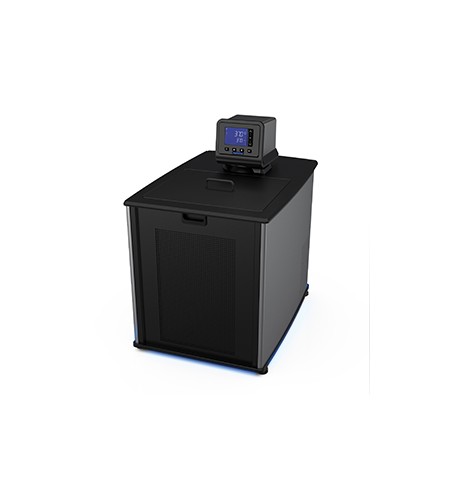

Polyscience SD28H170 28 Liter Heated Circulator
Gambar Produk
Polyscience SD28H170 28 Liter Heated Circulator
Update Terakhir
07-04-2016
Dilihat Sebanyak
87 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience SD28H170 28 Liter Heated Circulator
Key Specifications
| Description |
170, 28 L Htg. Circulator |
|---|---|
| Controller Type |
Standard Digital
|
| Display |
3.75" Touch-Pad LCD
|
| Connectivity |
RS232
|
| Languages Supported |
English
|
| Swivel 180 Rotating Controller |
Yes
|
| Working Temperature Range °C |
Ambient +10° to 170°
|
| Temperature Stability °C |
±0.04°
|
| Fluid Optimization/Specific Heat Tuning |
Automatic
|
| Temperature Calibration Capability |
1-point
|
| Working Access (L x W x D) (cm) |
31.4 x 35.9 x 14 cm
|
| Pump Type |
Pressure
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
Key Features
- Large, universal icon and English display
- Swivel 180™ Rotating Controller
- On-board connectivity: RS-232 serial output
- On-screen prompts
- Automatic performance optimization
- Single-point calibration capability
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Ambient + 20° to 338°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 170°
|
| Reservoir Capacity (gallons) |
7.4
|
| Reservoir Capacity (liters) |
28
|
| Reservoir/Tank Material |
Stainless Steel
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| LidDock |
Yes
|
| Working Access (L x W x D) (inches) |
12.35 x 14.13 x 5.5 in
|
| Working Access (L x W x D) (cm) |
31.4 x 35.9 x 14 cm
|
| Temperature Stability °F |
±0.08°
|
| Temperature Stability °C |
±0.04°
|
| Display |
3.75" Touch-Pad LCD
|
| Display Resolution (Set) |
0.1
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Pressure
|
| Pump Speed |
Two
|
| Process Connections |
1/4" (F) NPT
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Cooling Coil |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
26.5 x 18 x 16.6 in
|
| Overall Dimensions (L x W x H) (cm) |
67.2 x 45.7 x 42.2 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
82.0
|
| Shipping Weight (kilograms) |
37.1
|
| Catalog Page Number |
58-59
|
60 Hz Only
| Part Number |
SD28H170-A11B
|
|---|---|
| Maximum Pressure (psi) |
3.5
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
2.90
|
| Maximum Pressure Flow Rate (l/min) |
11.0
|
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16"
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
SD28H170-A12E
|
|---|---|
| Maximum Pressure (psi) |
2.9
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
2.70
|
| Maximum Pressure Flow Rate (l/min) |
10.2
|
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
| Heater Wattage |
2200
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10
|
| Regulatory Approvals |
CE
|
