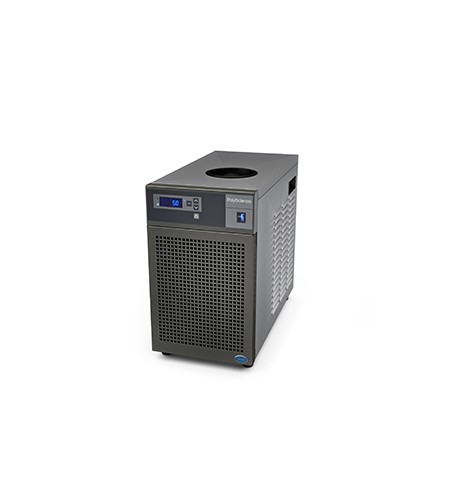

Polyscience LM-6M LM Series Chiller, Centrifugal Pump
Perhatian!
Spesifikasi Polyscience LM-6M LM Series Chiller, Centrifugal Pump
Key Specifications
Description |
LM Series 1/3 HP Benchtop Chiller, Centrifugal Pump; 14.5 psi; 13.2 l/min |
---|---|
Display |
LED
|
Connectivity |
Optional: RS232
|
Working Temperature Range °C |
-10° to 30°
|
Temperature Stability °C |
±0.1°
|
Temperature Calibration Capability |
1-point
|
Pump Type |
Centrifugal
|
Key Features
- Optimized for performance at low temperatures
- Ideal for benchtop rotary evaporators
- Large, easy to read LED display
- Space-saving design
- Cooling at ambient temperatures as high as 35°C
- Low flow shutoff and alarm, high and low temperature alarms
- Simple setup, operation, and maintenance
- Choice of two different centrifugal pumps
- Fluid level indicator
- RS232 communication and external water filter optional
Related Fluids & Accessories
Common Specifications
Working Temperature Range °F |
14° to 86°
|
---|---|
Working Temperature Range °C |
-10° to 30°
|
Reservoir Capacity (gallons) |
0.7
|
Reservoir Capacity (liters) |
2.65
|
Reservoir Cover |
Screw-on Cap
|
Cleanable Air Filter |
Yes
|
Temperature Stability °F |
±0.2°
|
Temperature Stability °C |
±0.1°
|
Display |
LED
|
Pump Type |
Centrifugal
|
Pump Speed |
Constant, Single Speed
|
Process Connections |
1/2" (F) NPT
|
Over-Temperature Protection / Failsafe Heater Control |
Yes
|
Reservoir Liquid Level Indicator |
Yes
|
Cool Command Refrigeration Technology |
Yes
|
Reservoir Drain |
Yes
|
Maximum Ambient Temperature °F |
95°
|
Maximum Ambient Temperature °C |
35°
|
Overall Dimensions (L x W x H) (inches) |
20 x 10 x 19 in
|
Overall Dimensions (L x W x H) (cm) |
50.8 x 25.4 x 48.3 cm
|
Compressor Size (HP) |
1/3
|
Refrigerant |
R404A
|
Shipping Weight (pounds) |
75.0
|
Shipping Weight (kilograms) |
34.5
|
Catalog Page Number |
100
|
60 Hz Only
Part Number |
LM61MX1A110C
|
---|---|
Maximum Pressure (psi) |
14.5
|
Maximum Pressure (bar) | |
Maximum Pressure Flow Rate (gpm) |
3.50
|
Maximum Pressure Flow Rate (l/min) |
13.2
|
Cooling Capacity @ -10°C (W) | 170 |
Cooling Capacity @ -5°C (W) |
210
|
Cooling Capacity @ 0°C (W) | 250 |
Cooling Capacity @ +10°C (W) | 340 |
Cooling Capacity @ +20°C (W) |
420
|
Cooling Capacity @ +30°C (W) | 540 |
Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/12
|
Regulatory Approvals |
CSA
|
50 Hz Only
Part Number |
LM62MY1A110E
|
---|---|
Maximum Pressure (psi) |
12.5
|
Maximum Pressure (bar) | |
Maximum Pressure Flow Rate (gpm) |
3.00
|
Maximum Pressure Flow Rate (l/min) |
11.4
|
Cooling Capacity @ -10°C (W) | 110 |
Cooling Capacity @ -5°C (W) | 135 |
Cooling Capacity @ 0°C (W) |
170
|
Cooling Capacity @ +10°C (W) | 280 |
Cooling Capacity @ +20°C (W) |
390
|
Cooling Capacity @ +30°C (W) | 500 |
Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/5
|
Regulatory Approvals |
CE
|
