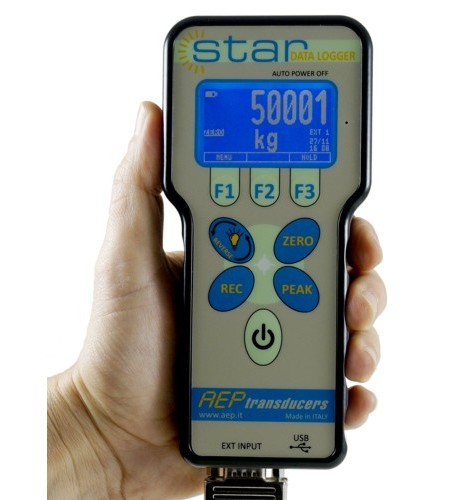

AEP STAR-F
Perhatian!
Spesifikasi AEP STAR-F
Description
Internally the microcontroller process the signals coming from the sensors through a 24 bit (±50.000 divisions at 2mV/V) analogue digital converter at a conversion frequency varying from 5Hz at 4800Hz by making it suitable for every application that may require both high resolution and high sampling frequencies.
The display of measurements happens through a big graphic backlighted display.
Star is equipped with USB interface that allows both the communication in real-time with a PC and the recharge of the internal long-lasting and great reliability battery (Li-Ion).
In addition to the direct reading of the measurements, it is possible to detect PEAKS, block the measurement on the display thanks to the HOLD function and through the internal DATA LOGGER it is possible to record up to 130.000 measurement at programmed intervals or manually through the REC button.
On request, as an OPTION it is possible to integrate a WIRELESS interface that allows to communicate with PC, TABLET or PLC in real time.
By using WinWIMOD software it is possible to create a NETWORK with a max. number of 32 units, the net can consist of both STAR instruments and sensors interfaced with WIMOD.
Metal case
Li-Ion internal battery which ensures a 24 hours AUTONOMY
Protection class IP40
Functions ZERO, FILTER, PEAK, AUTO POWER OFF, DATA LOGGER, REC .....
USB output
Display grafico retroilluminato
Batteria interna ricaricabile con autonomia 24 ore
Divisioni ± 50.000
Protezione: IP40
Funzioni: ZERO, FILTRO, PICCO, AUTO SPEGNIMENTO, DATA LOGGER, LINEARIZZAZIONE SENSORI
Uscita USB
Completo di Valigia e alimentatore con cavo USB
OPZIONI
Interfaccia WIRELESS che permette di comunicare con PC, TABLET o PLC in tempo reale.
Software Quick Analyzer Light che permette di registrare prove e test in tempo reale su PC e di scaricare il Data Logger.
