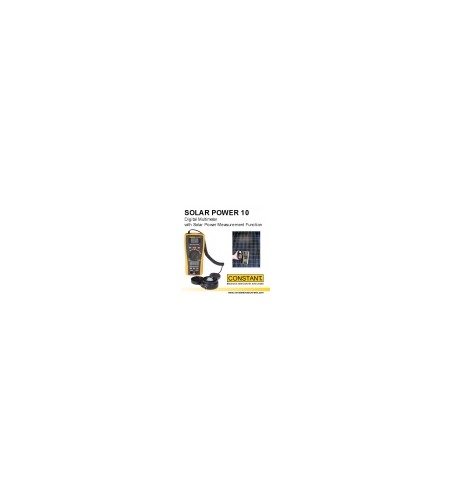

CONSTANT SOLAR POWER 10, Digital multimeter with solar power measurement function
Perhatian!
Spesifikasi CONSTANT SOLAR POWER 10, Digital multimeter with solar power measurement function
Features
- Solar power measurement up to 1999W/m2 or 634BTU/(ft2*h)
- Auto range digital multimeter
- High accuracy and rapid response
- Data hold
- Maximum and minimum values
- Low battery indication
- Easy to use
| Operating Temperature & RH | 0~40°C (32~104°F), <80%RH |
| Storage Temperature & RH | -10~50°C (14~122°F), <70%RH |
| Display | 3½ digits LCD with maximum reading 1999 |
| Sampling Time | ±0.25 second |
| Resolution | 1W/m2 : 1BTU(ft2*h) |
| Accuracy | ±10W/m2 [±3BTU(ft2*h)] or ±5% whichever is greater in sunlight. Additional temperature induced error ±0.38W/m2/°C |
| Over Range Indication | show 'OL' |
| Low Battery Indication | show 'BAT' |
| Range | 1999W/m2 ; 634BTU(fth*h) |
| Polarity | Minus sign or negative polarity |
| Auto Power Off | ±15 minutes |
| Fuse | 0.2A/250V |
| Batteries | 9V battery and 2 AAA batteries |
| Size | 162x74x43mm |
| Weight | ±280g (including battery) |
| Standard Accessories | Test leads, soft pouch, instruction manual, warranty card, certificate of product conformance |
| Function | Range | Accuracy |
| DC Voltage | 200mV | ±(0.5%rdg + 3d) |
| 2/20V | ±(1.0%rdg + 3d) | |
| 200/600V | ±(1.0%rdg + 3d) | |
| AC Voltage | 2/20V | ±(1.0%rdg + 5d) |
| 200/600V | ±(1.5%rdg + 10d) | |
| DC Current | 200µ/2mA | ±(1.5%rdg + 3d) |
| 20m/200mA | ±(2.0%rdg + 3d) | |
| AC Current | 200µ/2mA | ±(1.8%rdg + 8d) |
| 20m/200mA | ±(2.5%rdg + 8d) | |
| Resistance | 200Ω | ±(0.8%rdg + 5d) |
| 2k/20k/200kΩ | ±(1.2%rdg + 3d) | |
| 2MΩ | ±(2.0%rdg + 5d) | |
| 20MΩ | ±(5.0%rdg + 8d) | |
| Diode Test | 1mA max/1.5V | |
| Continuity | Buzzer will sound if the resistance <150Ω |
|
