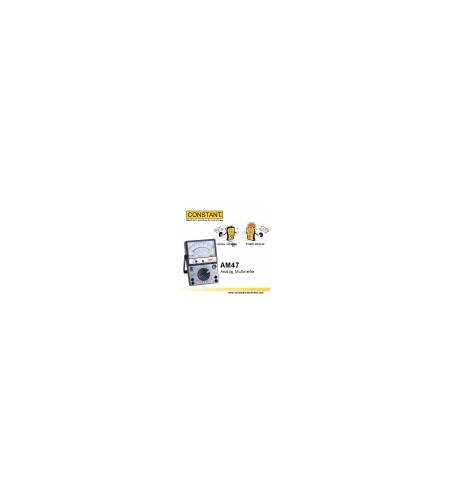

CONSTANT AM47 ANALOG MULTIMETER
Perhatian!
Spesifikasi CONSTANT AM47 ANALOG MULTIMETER
- Using Intelligent Protection
- Infrared Transmitter Test Function
| Function/Remarks | Range | Accuracy |
|
DCA / |
50µ/5m/50m/500mA | ±2.5% rdg against full scale |
| 10A | ±5.0% rdg against full scale | |
| DCV / Input Impedance 20kΩ/V |
0.25/2.5/5/10/50V | ±2.5% rdg against full scale |
| 125/250/500/1000V | ||
| ACV / Input Impedance 9kΩ/V |
10/50/125/250V | ±5.0% rdg against full scale |
| 500/1000V | ||
| Resistance | 10k/100k/1M/10MΩ | ±10% rdg against full scale |
|
Standard Resistance Box
|
0.025/0.5/5/50/5kΩ | ±1.5% rdg against full scale |
| 50k/100k/200k/1MΩ | ||
| 2.5M/5MΩ | ||
| Capacitance | 50µ/500µ/5m/50mF | |
| Load Current | 15m/1.5m/150µ/90µA | |
| Low Voltage | 0 ~ 1.5V (at x10/x100/x1k) 0 ~ 9V (at x10k) |
|
| dB | -10 dB ~ +22 dB | |
| hFE | Read approximately hFE value of PNP/NPN transistor | |
| Infrared Testing | Peak degree ±15° Distance 1 ~ 30 cm |
|
| Diode | Read approximately forward voltage drop of the diode | |
| Continuity | If continuity exist ≤ 200Ω, built in buzzer will sound | |
| Battery | 9V x 1; 1.5V x 2, AA Size | |
| Size / Weight | H165 x W112 x D49mm / Approx. 550g | |
| Standard Accessories | Test Leads, Batteries, Manual, Carrying Case |
|
