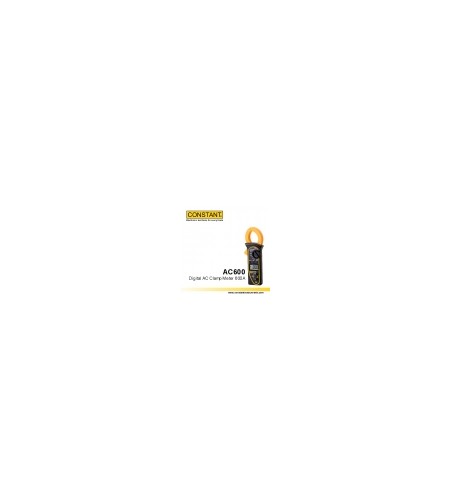

CONSTANT DIGITAL CLAMP METER AC 600
Perhatian!
Spesifikasi CONSTANT DIGITAL CLAMP METER AC 600
- 20mm Jaw Opening
- DMM Function
- Low Battery Indication
- Only Figure ”1” For Over Range Indication
- Negative Polarity Indication
Function | Range | Accuracy |
AC Current | ≤0.5A at 2A | ±(3.0% rdg + 10 dgts) |
2A/20A | ±(1.9% rdg + 10 dgts) | |
200/600A | ±(1.9% rdg + 5 dgts) | |
AC Voltage | 2/20/200V | ±(1.2% rdg + 5 dgts) |
600V | ±(1.5% rdg + 5 dgts) | |
DC Voltage | 200m/2/20/200V | ±(0.8% rdg + 2 dgts) |
600V | ±(1.0% rdg + 3 dgts) | |
Input Impedance | 10MΩ (AC and DC Voltage) | |
Resistance | 200/2k/20k/200k/2MΩ | ±(1.0% rdg + 3 dgts) |
20MΩ | ±(1.2% rdg + 5 dgts) | |
Temperature | -40°C ~ 400°C | ±(1.2% rdg + 4 dgts) |
400°C ~ 1000°C | ±(1.9% rdg + 15 dgts) | |
-40°F ~ 400°F | ±(1.2% rdg + 6 dgts | |
400°F ~ 1832°F | ±(1.9% rdg + 25 dgts) | |
Continuity | If continuity exists ≤ 50Ω, built in buzzer will sound | |
Display | 3½ digits, 1999 counts | |
Battery | 2 x 1.5V (AAA Size) | |
Size / Weight | H213 x W75 x D32mm / Approx. 240g | |
Standard Accessories | Test Leads, "K" Type Bead Thermocouple, Soft Pouch, Battery, Manual |
