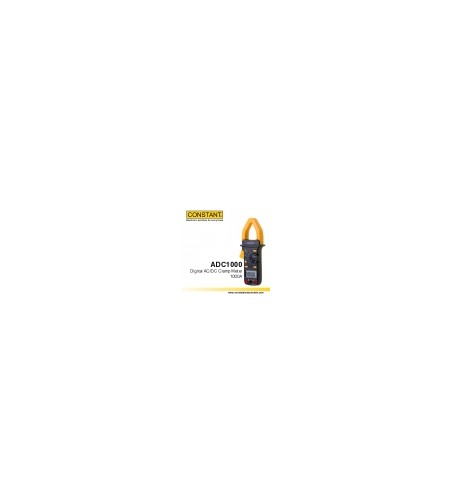

CONSTANT DIGITAL CLAMP METER ADC 1000
Perhatian!
Spesifikasi CONSTANT DIGITAL CLAMP METER ADC 1000
- Auto zero key for DC Current measurement
- DC Current direction sign
- 42 mm jaw opening
- DMM function
- Low battery indication
- ”OL” for over range indication
| Function | Range | Accuracy |
| AC Current | 400/1000A | ±(3.0% rdg + 3 dgts) |
| AC Voltage | 4/40/400V | ±(0.8% rdg + 5 dgts) |
| 700V | ±(1.0% rdg + 10 dgts) | |
| DC Current | 400/1000A | ±(3.0% rdg + 3 dgts) |
| DC Voltage | 0.4/4/40/400V | ±(0.7% rdg + 1 dgt) |
| 1000V | ±(0.8% rdg + 3 dgts) | |
| Input Impedance | 10MΩ (AC and DC Voltage) | |
| Resistance | 400/4k/40k/400k/4MΩ | ±(1.2% rdg ± 1 dgt) |
| 40MΩ | ±(2.0% rdg + 3 dgts) | |
| Capacitance | 4n/40n/400n/4µ/40µF | ±(4.0% rdg + 10 dgts) |
| Temperature | -40°C ~ 0°C | ±(1.0% rdg + 6 dgts) |
| 0°C ~ 400°C | ±(1.0% rdg + 3 dgts) | |
| 400°C ~ 750°C | ±(1.0% rdg + 5 dgts) | |
| Frequency | 40/400/4k/40k/100kHz | ±(2.0% rdg + 1 dgt) |
| Duty Cycle | 0.1% - 99.9% | |
| Diode | Read approximately forward voltage drop of the diode. | |
| Continuity | If continuity exists ≤ 30Ω, built in buzzer will sound. | |
| Display | 3¾ digits, 3999 counts | |
| Battery | 9V | |
| Size / Weight | H250 x W99 x D43mm / Approx. 480g | |
| Standard Accessories | Test Leads, “K” Type Bead Thermocouple, Hard Case, Battery, Manual |
|
