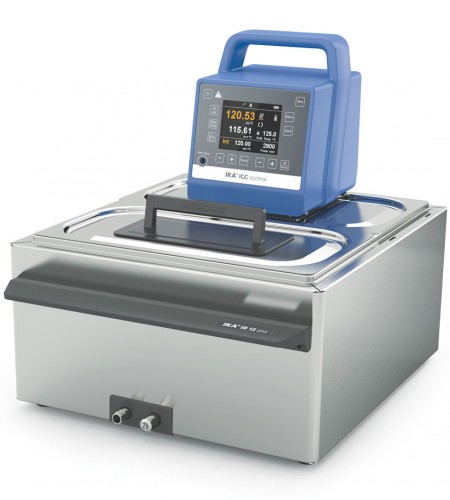

IKA NICC control pro 12 c
Perhatian!
Spesifikasi IKA NICC control pro 12 c
Package includes
- ICC control
- IB 12 pro
- BL.ICC Large bridge
- CM.ICC Medium cover
- PT 100.30 Temperature sensor
- PCS.ICC
- CC2 Cooling coil
| Appliance type | Compact Immersion Circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Operating temperature min. | -20 °C |
| Operating temperature max. (with external heating) | 150 °C |
| Working temperature min. | room temp. +10K @1000rpm °C |
| Working temperature max. | 150 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Temperature stability DIN 12876 | 0.01 ±K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | 0.1 ±K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Warning function insufficient temperature | no |
| Adjustable safety circuit min. | 0 °C |
| Adjustable safety circuit max. | 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 3.75 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 / 115 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
