Handheld Ultrasonic Flow Meter

Portable Ultrasonic flow meter sitelab 1168  devote to make the liquid resource effective use, provide energy saving and emission reduction, reduce liquid resource loss. To measure accurately and coming up with the overall plan to promote the liquid resource use effectively.

SiteLab ultrasonic flow meters products are application to irrigation, water supply, industrial water, electric power, orchards etc. Depend on the “PicoFly” patent technology, SiteLab ultrasonic products are application to aerospace and aviationfrontier etc.

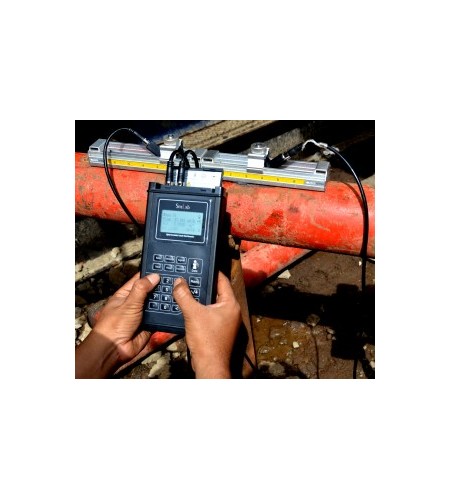

Portable ultrasonic flow meter is a flow meter that can under go everywhere. The ultrasonic flow meter installation is very straightforward system where a sensor called a transducer affixed to the outside of the pipe. Portable ultrasonic flow meter is very suitable when used by the engineer to determine the water flow in a pipe flow without having to cut or perforate the pipe.

SL1168P portable ultrasonic flow meter can be used to measure water flow in pipes up to 40-inch pipe size, the type of pipe can be of carbon steel pipe, stainless steel pipe, pvc pipe, pipe or other plumbing galvanize.

Portable ultrasonic flow meter can also be used to measure liquids other than water, such as solar, sea water, chemical, oil, and other liquids. Portable ultrasonic flow meter is also equipped with a card to store data that can be down loaded to a computer using a card reader

The model SL1168P portable handheld ultrasonic flow meter (here-in after referred to as SL1168P) is a true state-of-the-art transit-time flow meter designed using the latest digital technology and intelligent self-correcting sonic transmission technology  and low-voltage broadband pulse transmission. While principally designed for clean liquid applications, the instrument is tolerant of liquids with the small amounts of air bubbles or suspended solids found in most industrial environments. SL11688P flow meters features high reliability and low maintenance. Compared with other flow meters and other ultrasonic flowmeters, the SL1168P portable flow meter is characterized by high accuracy, high reliability, superior performance, rapid response to flow changes, and low cost.

Applications by Industry

• Water supply
• Waste water treatment
• Seawater desalinization
• Pure/Ultra-pure water
• Industrial process water
• Cooling/Heating water
• Petrochemical
• Chemical
• Crude oil
• Lubricant oil
• Beverages
•  Many others

The SL1168P Portable ultrasonic flow meters provides a powerful and extremely user-friendly programming menu that includes instantaneous flow rate, positive total, negative  total, net total, velocity, date & time, and daily flow results. Its 1GB SD memory card promise high capacity data logging and a rechargeable lithium-ion battery supports continuous operation for a minimum of 16 hours.

Specifications :

• Transmitter (standard):
• Velocity range: 0 ~ ± 40ft/s (0 ~±12m/s)
• Accuracy: ±1% of reading
• Repeatability: 0.2%
• Power  supply:  11.1V  rechargeable  Lithium  Battery
• Power for 16 hours
• Output: 0/4~20mA, maximum 750Ω
• Transducers (magnetic clamp-on sensor rack)
• Measurement Pipe range: 25mm ~ 1200mm
• Protection rating: IP68
• Temperature range: -10℃  ~ 80℃)
• Transducer cable standard length: 16ft (5m)

The instrument setup and measurement displays are subdivided into more than 100 independent menus. The operator can input parameters, modify settings or display measurement results by “visiting” a specific menu. These menus are arranged by 2-digit serial numbers from  00~99, then using +0, +1, etc. Each menu ID code has a defined meaning. For example, menu 11 is the pipe outside diameter, while menu 25 is the mounting spacing between the transducers.
Transmitter (standard) :

• Flow range: 0 to ±40ft/s (0 to ±12m/s)
• Accuracy: ±0.5 of reading
• Repeatability: 0.3%
• Power supply: internal lithium battery with 8 hours of use
• Output: 0/4~20mA, maximum 750Ω
• Power consumption: 1W
• Weight: 3.3lbs (1.5kg)

Configuration Standart :

1.  Flow Transmitter
2. Transducer with scaled rack
3. Transducer Cable
4.  Pipe strips
5. Card reader
6.  4-20mA cable
7. Grease Coupling Compound
8.  Install CD
9.  Battery charger
10. Operating Manual
