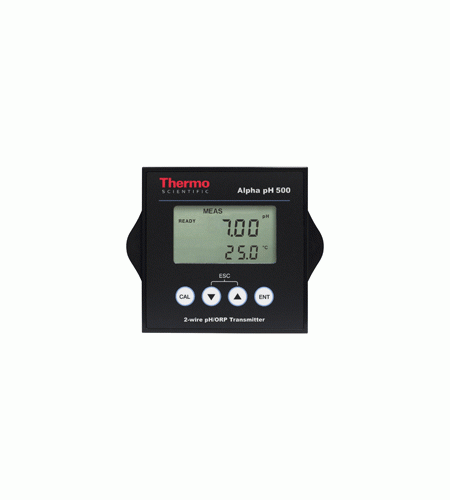

EUTECH Thermo Scientific Alpha pH 500 pH/ORP 2-Wire Transmitter
Perhatian!
Spesifikasi EUTECH Thermo Scientific Alpha pH 500 pH/ORP 2-Wire Transmitter
|
Product Specification |
Description |
| pH | |
| Range | 0.00 to 14.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.01 pH |
| ORP | |
| Range | -1000 to 1000 mV |
| Resolution | 1 mV |
| Accuracy | ±2 mV |
| Temperature | |
| Range | -10.0 to 110.0 ºC |
| Resolution | 0.1 ºC |
| Accuracy | ±0.5 ºC |
| Sensor | Pt100; 2 or 3 wire |
| Compensation | Auto/manual |
| Transmitter | |
| Transmitter Function | 4 to 20 mA scalable outputs for pH/ORP, galvanically isolated |
| Out-Of-Range Current Output | 3.8 mA: ‘On’ select selects 3.8 mA ‘Off’ selects 4 mA (under range) Selects 20 mA (over range) |
| Hold Current Output | 22 mA: ‘On’ select selects 22 mA ‘Off’ selects last measured current value |
| Load | Max. 600 Ohm |
| Electrical Data And Connections | |
| pH/ORP Input | 2-pin terminal; asymmetrical/symmetrical |
| Connection Terminal | 3-pin & 8-pin terminal, detachable blocks |
| Display | |
| LCD | 7 segments display with symbols for status information |
| Power Supply | |
| Input |
12 to 24 V DC |
| EMC Specifications | |
| Emitted Interference | According to EN 61326 |
| Immunity To Interference | According to EN 61326 |
| Environmental Conditions | |
| Operating Temperature Range |
0 to 40 ºC |
| Max. Relative Humidity | 80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC |
| Mechanical Specifications | |
| Dimensions (WxHxD) | 96 x 96 x 66 mm |
| Weight | 210 g (unit) / 310 g (packed) |
| Ingress Protection | IP65 |
