Handheld Ultrasonic Flowmeter SL1168P
Gambar Produk
Handheld Ultrasonic Flowmeter SL1168P
Update Terakhir
06-11-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
103 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Handheld Ultrasonic Flowmeter SL1168P

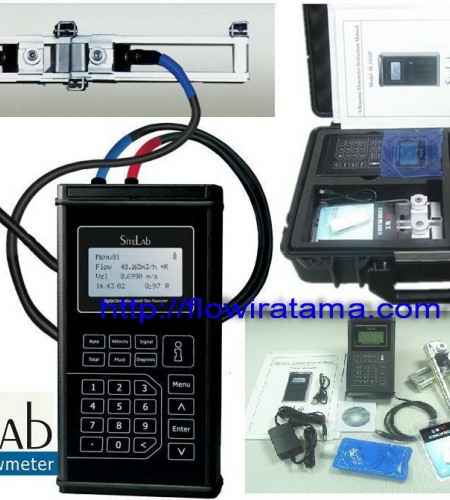

The SL1168P Portable ultrasonic flow meters provides a powerful and extremely user-friendly programming menu that includes instantaneous flow rate, positive total, negative total, net total, velocity, date & time, and daily flow results. Its 1GB SD memory card promise high capacity data logging and a rechargeable lithium-ion battery supports continuous operation for a minimum of 16 hours.
Specifications :
- Transmitter (standard):
- Velocity range: 0 ~ ± 40ft/s (0 ~±12m/s)
- Accuracy: ±1% of reading
- Repeatability: 0.2%
- Power supply: 11.1V rechargeable Lithium Battery
- Power for 16 hours
- Output: 0/4~20mA, maximum 750Ω
- Transducers (magnetic clamp-on sensor rack)
- Measurement Pipe range: 25mm ~ 1200mm
- Protection rating: IP68
- Temperature range: -10℃ ~ 80℃)
- Transducer cable standard length: 16ft (5m)
The instrument setup and measurement displays are subdivided into more than 100 independent menus. The operator can input parameters, modify settings or display measurement results by “visiting” a specific menu. These menus are arranged by 2-digit serial numbers from 00~99, then using +0, +1, etc. Each menu ID code has a defined meaning. For example, menu 11 is the pipe outside diameter, while menu 25 is the mounting spacing between the transducers.
Transmitter (standard) :
- Flow range: 0 to ±40ft/s (0 to ±12m/s)
- Accuracy: ±0.5 of reading
- Repeatability: 0.3%
- Power supply: internal lithium battery with 8 hours of use
- Output: 0/4~20mA, maximum 750Ω
- Power consumption: 1W
- Weight: 3.3lbs (1.5kg)
Configuration Standart :
- Flow Transmitter
- Transducer with scaled rack
- Transducer Cable
- Pipe strips
- Card reader
- 4-20mA cable
- Grease Coupling Compound
- Install CD
- Battery charger
- Operating Manual
