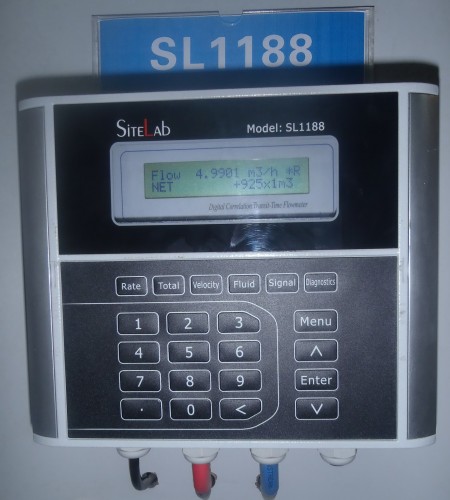

Wall mount flowmeter SL1188
Perhatian!
Spesifikasi Wall mount flowmeter SL1188
Accuracy +/-0.5% of Reading
Wide operating temperature range -40C to 150 C
One meter for a wide range of pipe sizes 25mm-5000mm
Clamp on sensors are simple to install, leading to lower installation and labor costs
Clamp on sensors mean no pipe cutting or process interruption and no plant shut-down
Wetted Sensors available for acoustically dead pipes.
Hygienic measurement, no risk of contamination, suitable for ultra clean liquids
Wide bi-directional Flow range of 0 to 12Metres/Second
Daily, monthly and yearly totalized flow
Internally configured batch controller makes batch control convenient
Measurement is independent of fluid conductivity meaning a wider applicability than magnetic meters
1G SD card high memory data logging, maximum memorize 512 days data.
Simple Menu driven setup with a wide range of common pipe materials, liners and fluids selectable.
Temperature inputs for energy measurement.
SPECIFICATIONS
Flow Range : 0 to ±12 m/s
Accuracy : ± 0.5 % of reading
Repeatability : ±0.3% of reading
Pipe Size : 25mm to 5000mm
Keypad : 16 (4×4) key with tactile action
Temperature: Transmitter:-40C to 60C
Humidity : Up to 99%RH, (non-condensing)
Display : 40 character, 2 line (20×2) lattice alphanumeric, backlit LCD
Transducer : -40C to 100C Standard. -40C to 150C High temp.
Outputs :
Analog : 0/4 to 20mA (max load 75Ω)
Pulse output : 0 to 9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output : SPST, max 1Hz, (IA@125VAC or 2A @ 30VDC)
Comms : RS232, RS485 Mod bus
Power Supply : 90 to 245 VAC, 48 to 63Hz. or 10 to 36 VDC (both are standard)
Physical Specifications :
Transmitter : IP65 Die-cast aluminum
Transducer : Encapsulated design Standard/maximum cable length : 9m/305Metres
Weight Transmitter : Approximately 4.7 lb (2.15kg)
Transducer : 0.9kg (standard)
