Seametrics Data Logger DL76
Gambar Produk
Seametrics Data Logger DL76
Update Terakhir
26-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
127 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Seametrics Data Logger DL76

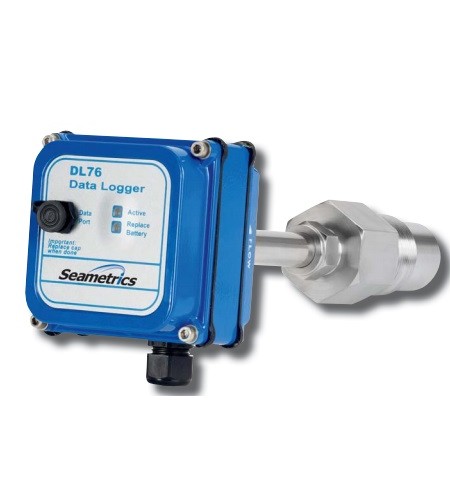

The DL76 is a battery-powered data logger that can be used with any Seametrics fl owmeter. It stores pulses for up to 3 years, depending on the user-selected frequency of reading. Indicator lights on the unit fl ash to indicate when it is functioning and when the battery is low.
The DL76 can be factory-mounted on the meter or remotely mounted. Housings are rugged cast aluminum, gasketed for environmental protection. When a DL76 logger is placed into operation, it is easily set up using a laptop computer. Data is also retrieved from the DL76 by means of a laptop and can be analyzed on the laptop or easily loaded on a desktop computer for analysis.
*FlowInspector version 2 software (ordered separately) is required for the downloading, storing, viewing, graphing, charting and printing of data in several formats. FlowInspector requires a PC with Windows 98, NT, 2000, XP, Vista or Windows 7; CD-Rom drive; 800 x 600 screen resolution; serial port or USB/serial adapter; and a Seametrics DC3 data cable. FlowInspector can be used with an unlimited number of dataloggers
FEATURES
• Easy to set-up, easy to use
• Weeks/months/years of data storage
• User-selected sampling interval
• Data retrieval with laptop computer
• Single data retrieval device serves multiple data loggers
APPLICATIONS
• Water usage monitoring, reporting, and management
• Custody transfer regulation
• Peak demand monitoring
MOUNTING
There are three mounting configurations for a DL76: Meter mount for mechanical meters, meter mount for insertion magmeters, and wall mount ( DL76W) . The meter mount models match up to any Seametrics lower square housing. All configurations can be factory-ordered or field-installed. Converting from one mounting configuration to another requires use of MK10 or MK20 mounting kits.
The DL76 can be factory-mounted on the meter or remotely mounted. Housings are rugged cast aluminum, gasketed for environmental protection. When a DL76 logger is placed into operation, it is easily set up using a laptop computer. Data is also retrieved from the DL76 by means of a laptop and can be analyzed on the laptop or easily loaded on a desktop computer for analysis.
*FlowInspector version 2 software (ordered separately) is required for the downloading, storing, viewing, graphing, charting and printing of data in several formats. FlowInspector requires a PC with Windows 98, NT, 2000, XP, Vista or Windows 7; CD-Rom drive; 800 x 600 screen resolution; serial port or USB/serial adapter; and a Seametrics DC3 data cable. FlowInspector can be used with an unlimited number of dataloggers
FEATURES
• Easy to set-up, easy to use
• Weeks/months/years of data storage
• User-selected sampling interval
• Data retrieval with laptop computer
• Single data retrieval device serves multiple data loggers
APPLICATIONS
• Water usage monitoring, reporting, and management
• Custody transfer regulation
• Peak demand monitoring
MOUNTING
There are three mounting configurations for a DL76: Meter mount for mechanical meters, meter mount for insertion magmeters, and wall mount ( DL76W) . The meter mount models match up to any Seametrics lower square housing. All configurations can be factory-ordered or field-installed. Converting from one mounting configuration to another requires use of MK10 or MK20 mounting kits.
