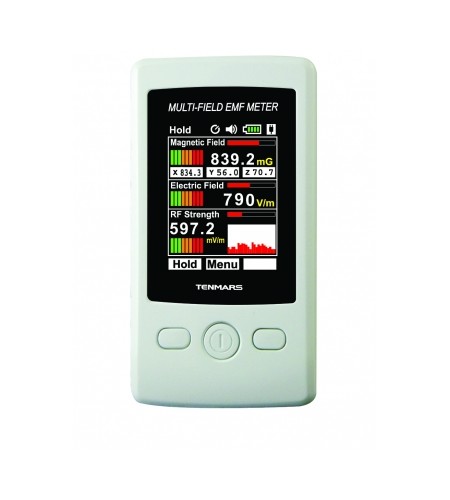

TENMARS TM-190 Multi-Field EMF Meter
Perhatian!
Spesifikasi TENMARS TM-190 Multi-Field EMF Meter
Product Description
- 4 digits, 2.4 inches color TFT LCD.
- 3 measurements in one meter:
Electromagnetic Field ( 3 - axis ).
Electric Field.
RF Strength Field.
- Data Hold (HOLD).
- Language Selection (choose your language):
English; Traditional Chinese; Simplified Chinese; Japanese; Spanish
Specification:
|
|
Electromagnetic field |
Electric field |
RF Strenght field |
|
Sensor type: |
Low Frequency Triple axis (X, Y, Z) |
LF Electric Fields |
RF Strength |
|
Range: |
0.02~2000mG, 0.02 to 200µT |
50V/m to 2000V/m. |
0.02µW/m² ~ 554mW/m² |
|
Resolution: |
0.01/0.1/1 mG or 0.01/0.1/1 µT |
1 V/m |
0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB |
|
Frequency: |
50/60 Hz |
50/60Hz |
50MHz to 3.5GHz |
|
Accuracy: |
±(15%+100dgt) |
± (7%+50dgt) |
± 2dB at 2.45GHz |
- Display: 4 digits, 2.4 inches color TFT LCD.
- Sample rate: 6 seconds per time.
- Battery life: approximate 8 hours.
- Battery: 1.5V AAA alkaline battery*3.
- Audible key tone alarm: buzzer
- Operating temperature & humidity: 5°C to 40°C, below 80% RH.
- Storage temperature & humidity: -10°C to 60°C, below 70%.
- Weight: about 120g.
- Dimensions: 115(L) x 60(W) x 21(H) mm.
Remarks: TM-190 can be powered via USB mini-B (5 pin) connection, user’s external power supply (voltage DC 4.8 ~ 5.2V; current ≧ 500mA).
