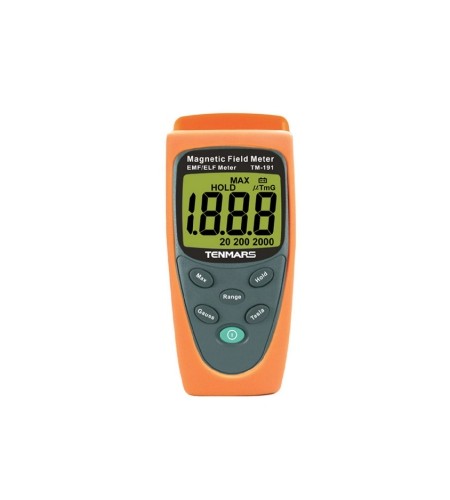

TENMARS TM-191 EMF Meter

Product Description

- Display range: 20,200,2000
- Display units: micro-Tesla and mini-Gauss.
- Data hold (HOLD) and Maximum (MAX) hold functions.
- Low battery indication.
- Overload indication

Application

-This meter is applied to measuring electromagnetic fields of extremely low frequency(ELF) of 30 to 300Hz.

-It is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, air conditioner, refrigerator, computer monitor, video/audio device and so forth.


Specification

- Display: 3-1/2 digits LCD, maximum reading 1999.

- Range: 200/2000 mG,20/200μT.

- Resolution: 0.1/1 mG or 0.01/0.1 μT.

- Frequency response: 30Hz to 300Hz.

- Sensor: Single Axis

- Accuracy:  ± (2.5%+6dgt) at 50Hz/60Hz.

- Over load: LCD display “OL”.

- Sample rate: 2.5 times per second.

- Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

- Battery life: Approximate 100 hours.

- Operating temperature & humidity: 5℃to 40℃,below 80% RH.

- Storage temperature & humidity: -10℃ to 60℃, below 70%.

- Weight: About 170g.

- Dimensions: 130(L)*56(W)*38(H)mm.

- Accessories: User’s manual, 9V battery, Carrying case
