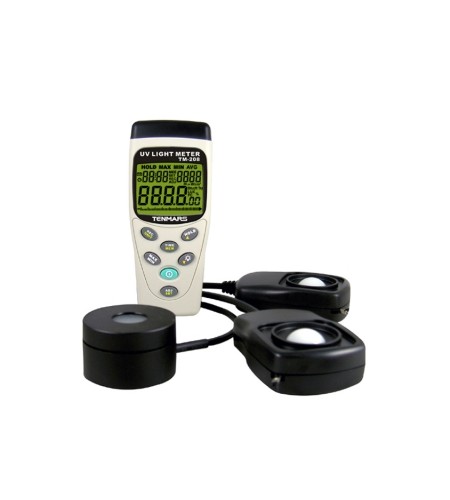

TENMARS TM-208 _ Solar, UVA & Light Meter (3 in 1)
Perhatian!
Spesifikasi TENMARS TM-208 _ Solar, UVA & Light Meter (3 in 1)
Product Description
- 3 3/4 digits backlit LCD with max. reading 3999.
- 3 in 1 design, UV Power, Solar Power and Illumination(light) measurement.
- USB datalogging capacity: 45,000 records.
- Real time clock with calendar.
- Rel (relative) function / Zero Adjustment
APPLICATION
TM-208 is a 3 in 1 Meter, it measure the following sources:
UVA :
- Highly reliable direct reading Instrument designed expressly for measuring light intensity at
the wafer plane of mask aligners.
- UV curing light sources, and any other UV light source.
Solar Power Features:
- The accuracy is +/-3% at 1,000 Watts/m2 .
- Solar power research.
- Physics and optical laboratories.
- Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.
- It's great for those who test PV modules or arrays in the field.
Illumination Features:
- According to JISC1609: 1993 and CNS 5119 general A class spec.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Silicon photodiode and filter. Cosine angular corrected.
This model is very useful in the warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video, parking garages, museums, art galleries, stadiums, building security and so on.
sPECIFICATION
|
Measuring range |
UVA measurement |
Illumination measurement |
Solar measurement |
|
|
40.0uW, 400uW, 4,000uW,20mW |
40,400,4,000,40,000,400,000Lux 40,400,4,000,40,000Foot-candel |
40, 400, 2000 W/m2 13,127,634 Btu/ft2.h |
||
|
Resolution |
0.01uW,0.1uW, 1uW,0.01mW |
0.01,0.1,1,10,100 Lux 0.01,0.1,1,10 Foot-candel |
0.01, 0.1, 1 W/m2 0.01, 0.1, 1 Btu/ft2.h |
|
|
Accuracy |
+/-4% |
+/-3% (Calibrated to standard incandescent lamp 2856º K)
+/-6%(other visible light source ) |
+/-10W/m2 or +/- 5% |
|
|
Wavelength |
320~400nm |
400~1100nm |
400~1100nm |
|
|
USB datalogger |
45,000 records |
|||
|
Sample Time |
4 tims per second. |
|||
|
Data Output |
USB PC serial interface. |
|||
|
Power Supply |
9V battery(NEDA 1604 IEC 6F 22 JIS 006P) |
|||
|
Battery life |
approx. 100 hr. |
|||
|
Total Weight |
approx. 1,200g |
|||
|
Accessories |
Instruction manual. |
|||
|
9V battery(NEDA 1604 IEC 6F 22 JIS 006P) |
||||
|
Carrying case |
||||
|
UVA sensor probe. |
Illumination sensor probe. |
SOLAR sensor probe. |
||
|
Sensor probe |
Ø49 x 28(H) mm. |
80(L) X 55(W)X25(H)mm. |
80(L) X 55(W)X25(H)mm |
|
|
Main instrument |
130(L) x 55(W) x 38 (H)mm |
|||
