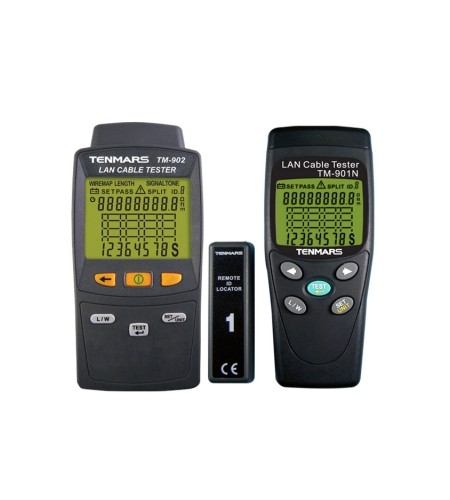

TENMARS TM901N_TM-902 LAN Cable Tester
Perhatian!
Spesifikasi TENMARS TM901N_TM-902 LAN Cable Tester
Product Description
- Detects opens, shorts, miswires and split pairs on the twisted pair cabling on the LAN cable.
- Measures length.
- Auto backlit.
- Auto power off.
Application
The backlit LCD screen displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen. Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable.
Specification
|
Model: |
TM-901N |
TM-902 (for OEM olny) |
|
Connector type |
RJ-45 |
|
|
Cable category |
LAN cable (UTP, STP),cable. |
|
|
Wire-map test |
Detects opens, shorts, miswires, split pairs |
|
|
Length test |
up to 255 M (836 ft) |
|
|
Length resolution |
0.1 m (ft) |
|
|
Length units |
Meter and Foot |
|
|
Accuracy |
+/- 10% + 1.0M (3 ft) |
|
|
Operating temp. and RH |
5 to 40 ºC, below 80% RH. |
|
|
Storage temp. and RH |
-10 to 60ºC, below 70%. |
|
|
Power |
9V batteryx1 |
1.5V battery x 6 |
|
Dimensions (L x W x H) |
130 x 56 x 38mm. |
156 x 73 x 35mm |
|
Weight |
About 160g |
About 170g |
|
Accessories
|
User’s manual, battery, Carrying case, Test Cable x1, Remote ID (1) x1 |
|
