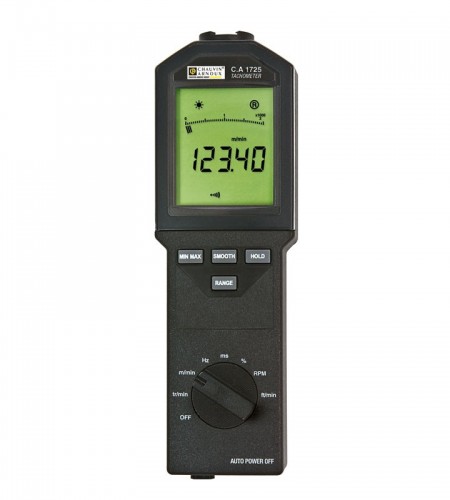

MITCHEEL AEMC CA1725 Infrared Tachometer

rotational speed Function

Range: 6 to 100,000rpm
Resolution: 0.0006 to 6 depending on range
Accuracy: 1x10-4 of reading ± 6 counts

Linear speed Function

Range: 0.1 to 10,000m/min or ft/min
Resolution: 0.0006 to 6 depending on range
Accuracy: 1x10-4 of reading ± 1 increment

Frequency Function

Range: 0.1 to 10,000Hz
Resolution: 0.0004 to 0.4 depending on range
Accuracy: 4x10-5 of reading ± 4 counts

Period Function

Range: 0.1 to 10,000ms
Resolution: 0.0003 to 0.3 depending on range
Accuracy: 1x10-4 of reading ± 5 counts

Duty cycle Function

Range: 10 to 10,000%
Resolution: 0.1 to 1% depending on range
Accuracy: 0.1% of scale from 0.2 to 50Hz
Accuracy: 0.2% of scale from 50 to 125Hz
Accuracy: 1% of scale otherwise

Count function

Range: 0 to 99,999 events;
Accuracy: ± 1 event (Model CA1727)
