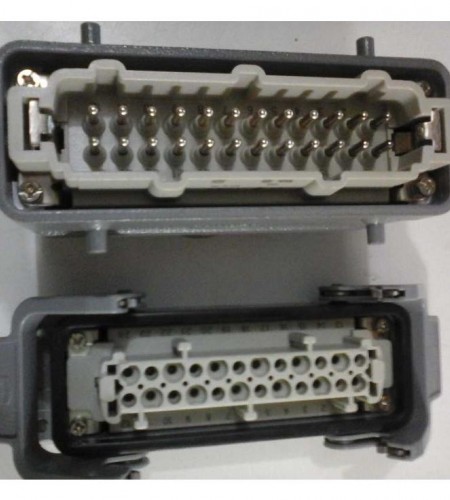

Han A Harting Connector
Gambar Produk
Han A Harting Connector
Update Terakhir
08-11-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
127 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Han A Harting Connector
Harting HAN A
Features :
- Metal and plastic version available
- Han 3A hoods/housing metal and plastic version available
- Han 3 A /4 A insert also with Han - Quick Lock termination technologi available
- Han 10 A and 16 A insert available in crimp and screw termination
- For current up to 10 A ( Han 3A/ Han 4A and Han 16 A ( Han 10A / Han 16A)
Insert
- Number of contact : 3, 4, 16, 32 ( 2x 16) +PE
Electrical data :
- Han 3 A/ Han 4A : 10A 230/400V 4 kV 3
Rated current : 10 A
Rated voltage conductor - ground 230 V
Rated voltage conductor -conductor : 400V
Rated impulse voltage : 4 KV
Pollution degree : 3
or 10A, 250V,4kV, 3
- Han 10A / Han 16A : 16A, 250V, 4kV 3
Rated current : 16A
Rated voltage : 250V
Rated impulse voltage : 4 kV
Pollution degree : 3
Pollution degree 2 also : 16A 230/400V 4 kV 2
- Rated voltage
acc. to UL / CSA : 600 V
Insulation resistance :
Material : polycarbonate
Limiting temperature : -40 C ... +125 C
Flammability : acc. to UL 94 : V 0
Mechanical working life
- Mating cycles :
Contacs :
Material : copper alloy
Surface - hard - gold plated : 2 um Au over um Ni
Surface - hard - silver plated : 3 um Ag
Contact resistance :<- 1m
Crimp terminal - min : 0,14mm2/ AWG 26
Crimp terminal - max : 4mm2 /AWG 12
Screw terminal - min : 0.75 mm /AWG 18
Screw terminal - max :
Han 3A /4A : 1.5 mm/ AWG 14
Han 10A / 16A : 2.5 mm/ AWG 14
Tightening / test torque : 0.25 Nm Han 3A/4A
0,5 Han 10A/ 16A
Termination : Han - quick Lock
Blue slide
Terminal wire gauge : 0.5 .... 2.5 mm2 ( AWG 20 - 14)
Max. insulation diameter : 3.6 mm
Black slide :
Terminal wire gauge : 0.25 .... 1.5 mm2 (AWG 23 - 16)
Max. insulation diameter : 3.0 mm
Hoods / housing, thermoplastic Han 3A /Han 4A
Material : polycarbonate RAL7032
Locking element : polyamide RAL 7032
Flammability acc. to UL 94 : V 0
Hoods / housing seal : NBR
Limiting temperatures : -40 C ..... + 125 C
Degree of protection acc, to DIN EN 60 529 for coupled connector : IP 65 / IP 67
Hoods / housing, metal
Material han 3A / 4A : zinc die-cast
Material han 10A/ 16A : alumunium die-cast
Locking element
Han 3A/ 4A : steel, zinc-plated
Han 10A/ 16A Han-easy lock
Hoods/ housings seal : NBR
Limiting temperature : -40C ... +125 C
Degree of protection acc, to DIN EN 60 529 for coupled connector
Han 3A /4A : IP 44
IP 67 is achieved with seal
Screw 09 20 000 9918
Han 10A/ 16A : IP 65
Type : Han 3A, Han 4A, Han 10A, Han 16A, Han 32A
