Han® 108 DD

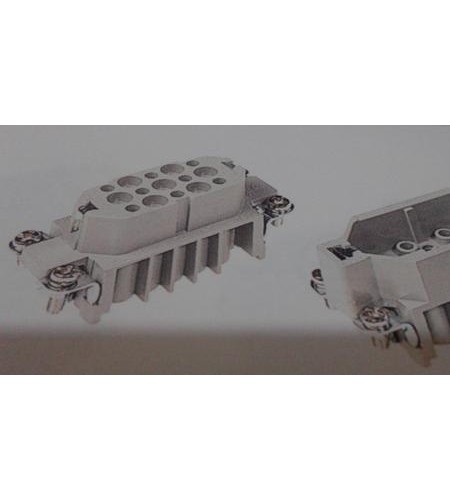

Gambar Produk
Han® 108 DD
Update Terakhir
27-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
90 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Han® 108 DD
Harting Han DD
Features :
- High density of crimping contacs, up to 216 contacs / connectors
- Time savingrapid terminationby use of crimping contacts
- For requirments up to 250 V/ 10A
- Gold and silver contacts available
- Suitable for thermo-and 1 mm F. O contacs
Inserts :
Number of contacs 24, 42, 72, 108, 144, 216, 144 ( 2x 72), 216 ( 2 x 108) + pe
Electrical data :
Acc. to EN 61 984 10A, 250V, 4kV 2
Rated current : 10 A
Rated voltage : 250 V
Rated impulse voltage : 4 kV
Pollution degree : 3
Pollution degree 2 also : 10A, 230/400V, 4kV 2
Rated voltage :
Acc. to UL/ CSA 600V
Insulation resistance : > 10
Material : polycarbonate
Limiting temperatures : - 40 C ... +125C
Flammability acc. to UL 94 : V 0
Mechanical working life
- mating cycles > 500
Contacs
Material : copper alloy
Surface - hard - gold - plated : 2 um Au Over3 um Ni
Surface - hard - silver plated : 3 um Ag
Contact resistance < 3 m
Crimp terminal - min 0.14 mm2 /AWG 26
Crimp terminal - max 2.5mm2 /AWG 14
Hoods/ housing
Material : alumunium die cast
Surface : powder coated
RAL 7037 ( grey)
Locking element : Han - easy lock
Flammability acc. to UL 94 : V 0
Hoods /housings seal : NBRC
Limiting temperatures : -40 / 125 C
degree of protection acc. to DIN EN 60 529
for coupledconnector : IP 65
Type : Han 7D, Han 8D, Han 15D, Han 25D, han 50D, Han 24D, Han 42D
Han 24 DD, Han 42 DD, Han 40D, Han 72 DD, Han 72DD, Han 64D, Han 108DD,
Han 80D, Han 144DD, Han 128D, Han 216 DD,
Features :
- High density of crimping contacs, up to 216 contacs / connectors
- Time savingrapid terminationby use of crimping contacts
- For requirments up to 250 V/ 10A
- Gold and silver contacts available
- Suitable for thermo-and 1 mm F. O contacs
Inserts :
Number of contacs 24, 42, 72, 108, 144, 216, 144 ( 2x 72), 216 ( 2 x 108) + pe
Electrical data :
Acc. to EN 61 984 10A, 250V, 4kV 2
Rated current : 10 A
Rated voltage : 250 V
Rated impulse voltage : 4 kV
Pollution degree : 3
Pollution degree 2 also : 10A, 230/400V, 4kV 2
Rated voltage :
Acc. to UL/ CSA 600V
Insulation resistance : > 10
Material : polycarbonate
Limiting temperatures : - 40 C ... +125C
Flammability acc. to UL 94 : V 0
Mechanical working life
- mating cycles > 500
Contacs
Material : copper alloy
Surface - hard - gold - plated : 2 um Au Over3 um Ni
Surface - hard - silver plated : 3 um Ag
Contact resistance < 3 m
Crimp terminal - min 0.14 mm2 /AWG 26
Crimp terminal - max 2.5mm2 /AWG 14
Hoods/ housing
Material : alumunium die cast
Surface : powder coated
RAL 7037 ( grey)
Locking element : Han - easy lock
Flammability acc. to UL 94 : V 0
Hoods /housings seal : NBRC
Limiting temperatures : -40 / 125 C
degree of protection acc. to DIN EN 60 529
for coupledconnector : IP 65
Type : Han 7D, Han 8D, Han 15D, Han 25D, han 50D, Han 24D, Han 42D
Han 24 DD, Han 42 DD, Han 40D, Han 72 DD, Han 72DD, Han 64D, Han 108DD,
Han 80D, Han 144DD, Han 128D, Han 216 DD,
