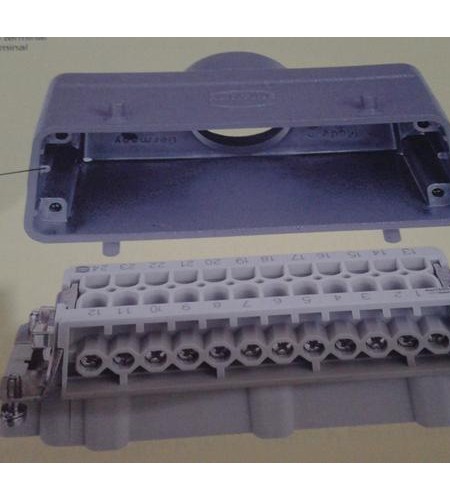

Harting Connector Han HVE
Perhatian!
Spesifikasi Harting Connector Han HVE
- Designed for application up to 830V
- Available in several termination techniques
- No special tools required
- Han Hv E screw requires special han Hv E housing
Number of contacs 3, 6, 10, 12 ( 2x6), 16, 20 (2x10), 32 (2x16) + PE + 2 additional contacs for safe high voltage connections
Electrical data acc. To DIN EN 61 984
Han Hv E 3, 6, 10, 12, 20 + PE 16A 830V 8kV 3
Rated current : 16A
Rated voltage : 830 V
Rated impulse voltage : 8 kV
Pollution degree : 3
Pollution degree 2 also : 16 A 1000V 8kV 2
Or 16 A 720/1250 8kV 2
Relay contacs : 16 A 50V0 6kV 3
Han Hv E 16, 32 + PE 16A 400/690V 6kV 3
Rated current : 16A
Rated voltage conductor - ground : 400 V
Rated voltage conductor – conductor : 690 V
Rated impulse voltage : 6 kV
Pollution degree : 3
Or 16 A 500V 6kV 3
Rated voltage
Acc to UL/CSA : 600V
Relay contacts : 250V
Insulation resistance : > 10
Material : polycarbonate
Limiting temperature : -40 c … + 125C
Flammability acc. To UL 94 V 0
Mechanical working life
-mating cycles : > 500
Contacs
Material : Copper alloy
Surface
Hard silver plated 3 µm Ag
Contact resistance : ≤ 1mΩ
Crimp terminal
Wire gauge 0.5 ….. 4 mm2
AWG 14
Tightening / test torque : 0.5 Nm
Type : Han 3 Hv E/ES, Han 6 Hv E/ES, Han 10 Hv E/ES, Han 6 Hv E, Han 12 Hv E/ES, Han 20 Hv E/ES, Han 32 Hv E/ES, Han 20 Hv EUntuk informasi lebih lanjut silakan hubungi :
