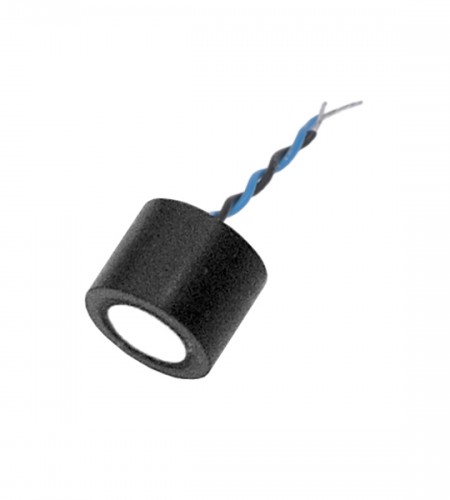

Airmarr AT300 Airducer
Perhatian!
Spesifikasi Airmarr AT300 Airducer
Applications
- Level measurement
- Automation control
- Proximity
- Obstacle avoidance
- Robotics
Highlights
- Best Operating Frequency: 300 kHz, ±4%
- Minimum Transmit Sensitivity at Best Transmit Frequency: 95 dB re, 1µPa/V at 1 m
- Minimum Receive Sensitivity at Best Receive Frequency: -180 dB re 1V/µPa
- Minimum Parallel Resistance: 650 Ω, ±30%
- Minimum and Maximum Sensing Range*: 4 cm to 1 m
- Typical Sensing Range: 5 cm to 50 cm
- Free (1 kHz) Capacitance: 450 pF, ±20% pF
- Beamwidth (@ -3 dB Full Angle): 10°, ±2°
- Maximum Driving Voltage (2% Duty Cycle Tone Burst): 200 Vpp
- Operating Temperature: -40°C to 70°C
- Weight: 4 g
- Housing Material: Glass filled polyester
- Acoustic Window: Glass reinforced epoxy
*Pulse-Echo Mode. Minimum and maximum ranges are best case scenarios. Actual range may vary, depending on drive circuitry and signal processing.
Features
- Rugged sealed construction
- Cylindrical design allows for installation in various applications
- Short-range measurement capabilities
