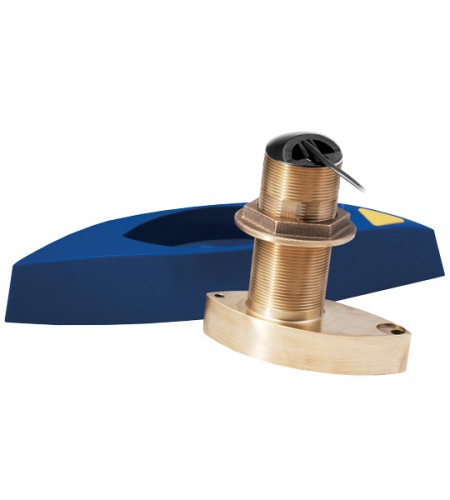

Airmarr B765LM CHIRP

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull CHIRP transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Hull Type: Fiberglass or wood

Specifications

• Hull Deadrise: Up to 24° with a fairing
• Acoustic Window: Urethane
• Weight: 2.5 kg (5.5 lb)

Technical Data

Transducer Designation:
L: 40-75A
M: 80-130A
