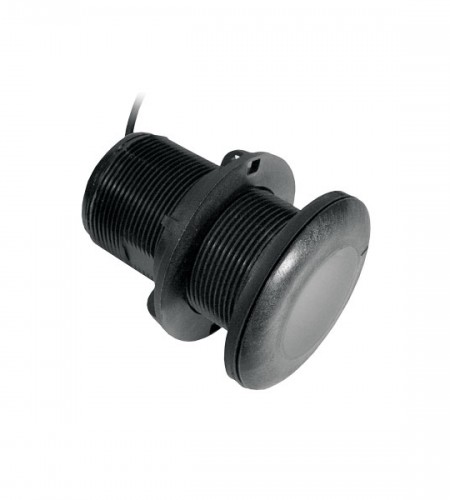

Airmarr P19 Traditional/CW

Manufacturer Part Numbers
Garmin—010-10218-00——Airmar—31-682-2-02
Lowrance—021-0074-00——Airmar—31-392-2-01



Features

• Depth only or Depth and temperature
• Fixed 20° tilted versions for 16° to 24° hull deadrise
• Fixed 12° tilted versions for 8° to 15° hull deadrise
• Fixed 0° tilted versions for 0° to 7° hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Plastic or bronze housings available
• Boat Size: Up to 9 m (30’)

Specifications

• Weight:
  • Plastic—0.5 kg (1.1 lb)
  • Bronze—0.9 kg (2.0 lb)
• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

Hole Diameter: 51 mm (2”)
