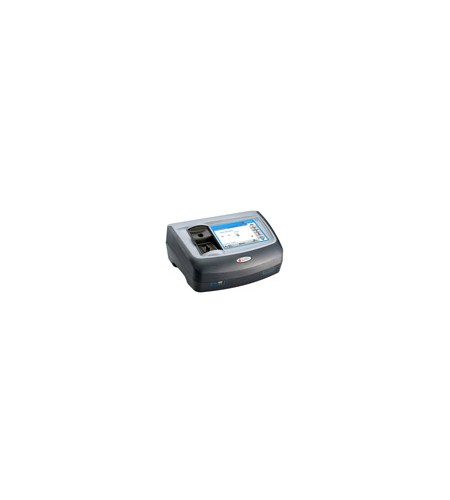

KOEHLER K13270 Petroleum Automatic Colorimeter-AC100
Perhatian!
Spesifikasi KOEHLER K13270 Petroleum Automatic Colorimeter-AC100
Conforms to the specifications of: ASTM D156, D1544, D1209, DIN 6162
Data log for 400 color measurements
USB- Ports: 2 x Type A, 1 x Type B and 1 EtherNet
Automatic Cell Recognition
Automatic Wavelength Calibration
16 Language Options
Beam Height: 10 mm
Data Storage: 400 color readings
Interface: 2 x USB Type A, 1 x USB Type B, 1 x EtherNet
Max. Storage Humidity: 80%
Max. Operating Humidity: 80%
Operating Temperature Range: 10 to 40°C
Optical Path Length: 10 mm - 50 mm
Optical System: 0° / 180° rectilinear
Photometric Accuracy: 1% at 0.5 to 2.0 Abs, 0.005 Abs at 0 to 0.5 Abs
Photometric Linearity: < 0.5 % to 2 Abs, 1% with neutral glass at 546 nm
Photometric Measuring Range: ± 3.0 Abs (wavelength range 340-900 nm)
Reproducibility: ± 0.2 % transmission
Spectral Bandwidth: 5 nm
Standard Illuminant: C
Standard Observer: 2°
Wavelength Accuracy: ± 1.5 nm
Wavelength Calibration: automatic
Wavelength Range: 380 nm to 720 nm
Wavelength Reproducibility: 0.1 nm
Color Ranges
Iodine Color (DIN 6162)
Hazen Color, APHA Pt/ Co Color (ASTM D1209, D5386, ISO 6271)
Gardner Color (ASTM D1544, ISO 4630)
Saybolt Color (ASTM D156)
Dimensions (HxWxD)
15.1x35.0x25.5cm (5.94x13.87x10.04in)
Net Weight: 4.20 kg (9.26lbs)
Electrical Requirements
100-240V / 50-60Hz
Output: 15V/40 VA
