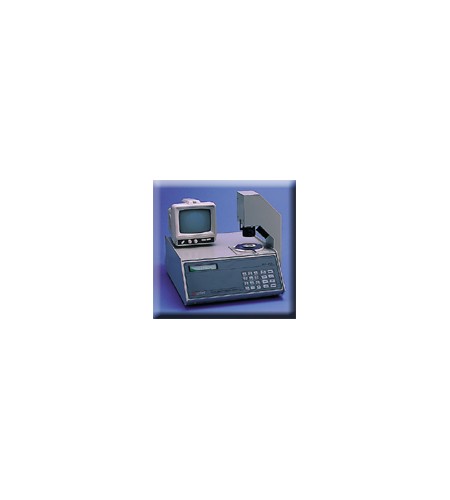

KOEHLER K90100 Automatic Melting Point Range Apparatus
Perhatian!
Spesifikasi KOEHLER K90100 Automatic Melting Point Range Apparatus
The melting point of a crystalline solid is the temperature at which the solid to liquid phase transition occurs, referenced at one atmosphere (1 ATM) of pressure.
Features and Benefits
• Conforms to BP Appendix 5 - Method 6 and GLP specifications
• Readily interchanged between automatic and manual detection of melting point ranges
• Intelligent Lamp Intensity Control with Soft Start
• Storage capacity for up to 20 sample tests
• User-interactive software and data entry, including easy alphanumeric entry of sample name, ID number, and date
• User selectable operating modes: automatic and manual.
Specifications
Conforms to: BP Appendix 5-Method 6; GLP
Visual Image: 10x magnified displayed on monitor
Temperature Range: ambient + 5 to 315°C
Heating Rates: 0.2, 0.5, 1.0, 2.0, 3.0, 6.0, 12.0°C/min
Temperature Readability: 0.1°C
Cooling Time: 20 minutes (300°C to ambient)
Temperature Accuracy:
±0.5°C (ambient + 5 to 200°C)
±0.8°C (200 to 315°C)
Sample size: 5 mg (approx.)
Sample Holder: Glass Slide 1 ± 0.02mm thick
Sample Cover: Glass Coverslip 0.17mm thick
Temperature Sensor: Pt-100 (2 wire RTD)
Test Storage: Up to 20 tests with parameters
Electrical Requirements
115V, 60Hz, Single Phase
220V, 50Hz, Single Phase
Dimensions lxwxh,in.(cm)
Main Unit: 16.5x12.25x13 (42x31x33)
Monitor: 8x5.5x5.5 (20x14x14)
Net Weight: Main Unit: 22 lbs (10 kg)
Monitor: 1.8 lbs (0.8 kg)
Shipping Information
Shipping Weight: 29 lbs (13 kg)
Dimensions: 3.6 Cu. ft.
