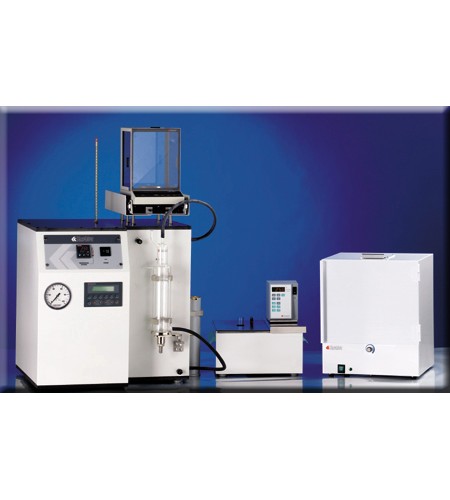

KOEHLER K88500 Air Release Value Apparatus & Data Acquisition Software
Perhatian!
Spesifikasi KOEHLER K88500 Air Release Value Apparatus & Data Acquisition Software
• Complete instrument and data acquisition system exclusively designed for conducting ASTM D3427, IP 313 and related test methods
• Powerful software system for Windows®-based PC platforms automates sample density measurements as well as the calculation of the air release value, the first order rate of air release, and the volume percent air versus time
• High accuracy temperature control with digital setpoint and display
• Digital control panel leads user from start to finish of test operation
• Automatic calculation of final sample density for determination of air release value
• Redundant overtemperature protection circuitry assures safe operation
Specifications
Conforms to the specifications of: ASTM D3427; IP 313; DIN 51381; NF E 48-614
Temperature Range: ambient to 75°C (167°F)
Included Accessories
Jacketed Test Vessel
ASTM 12C Thermometer
Sinkers, 5mL and 10mL
Drying oven
Pressure gauge
Circulating Bath
Air Bath for Sinker
Balance
Platinum Wire
Electrical Requirements
115V 60Hz, 3.0A
230V 50Hz, 1.5A
230V 60Hz, 1.5A
Dimensions lxwxh,in.(cm)
24x28x38.25 (61x71x97)
(Air Release Value Apparatus only)
Net Weight for complete system: 225 lbs (103kg)
Shipping Information
Shipping Weight for complete system: 300 lbs (136kg)
