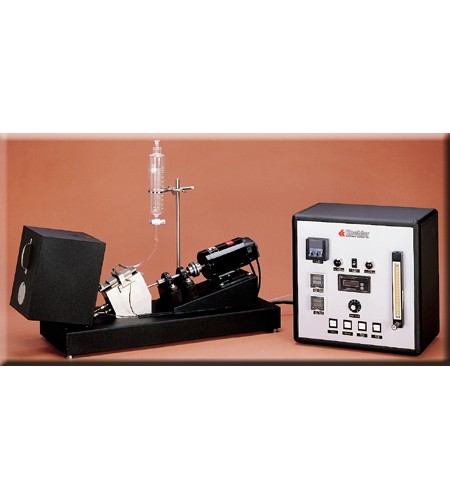

KOEHLER K50100 Panel Coking Test Apparatus
Perhatian!
Spesifikasi KOEHLER K50100 Panel Coking Test Apparatus
• Conforms to FTM 791-3462 specifications
• Suitable as a screening test prior to performing engine tests
Specifications
Conforms to the specifications of: FTM 791-3462
Maximum Temperature:
Test Panel: 400°C (752°F)
Sample Oil: 210°C (410°F)
Temperature Control: Separate controls for test panel and oil temperature, with digital °C/°F digital setpoint and display
Splashing Rate: 0-1800rpm, with digital display
Timer: 0-99.9 hr variable countdown
Flowmeter Range: 0.2-1.0L/hr
Oil Reservoir Capacity: 0.35 liter
Electrical Requirements
115V 50/60Hz, 8A
220-240V 50/60Hz, 5A
Dimensions lxwxh,in.(cm)
Test Unit: 32x18x21 (81x46x53)
Control Cabinet: 18x12x18 (46x30x46)
Net Weight:
Test Unit: 50 lbs (22.7kg)
Control Cabinet: 25 lbs (11.3kg)
Shipping Information
Shipping Weight: 135 lbs (61.2kg)
Dimensions: 26.7 Cu. ft.
