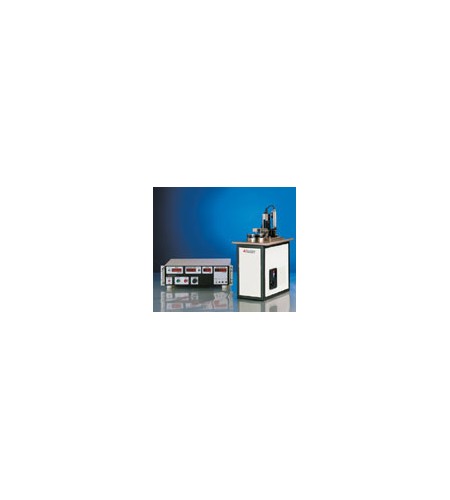

KOEHLER K93500 Pin-On-Disc Tester
Perhatian!
Spesifikasi KOEHLER K93500 Pin-On-Disc Tester
• Conforms to ASTM G99 standard test method
• Analyzes wear and friction characteristics of sliding contacts (dry or lubricated conditions)
• Tests can be performed on a variety of materials: metals, polymers, composites, ceramics, lubricants, cutting fluids, abrasive slurries, coatings, and heat-related samples
• TriboDATA software package varies and records pin pressure, pin temperature, sliding speed, and lubrication parameters
• Custom configurations available
Specifications
Conforms to the specifications of: ASTM G99
Sliding Speed Range: 0.26-10 m/sec
Disc Rotation Speed: 100-2000 rpm
Maximum Normal Load: 200 N
Frictional Force: 0-200 N
Wear Measurement Range: 4 mm
Pin Size: 3-12 mm diagonal/diameter
Disc Size: 160 mm x 8 mm thick
Wear Track Diameter: 10-140 mm
Specifications for Pin-On-Disc with Environmental Chamber & Lubricant Recirculating System
Temperature: 60°C
Discharge Rate: 0-1 L/min
Viscosity Range: 90SAE Maximum
Capacity: 3L of Lubricant
Included Accessories
Electronic Controller Unit
Connecting Cables
Spare Fuses
TriboDATA Software
Set of Weights
Set of Hand Tools
Set of Pins
Calibration and Test Reports
Shipping Information
Shipping Weight: 440 lbs (200 kg)
Dimensions: 18 Cu. Ft.
