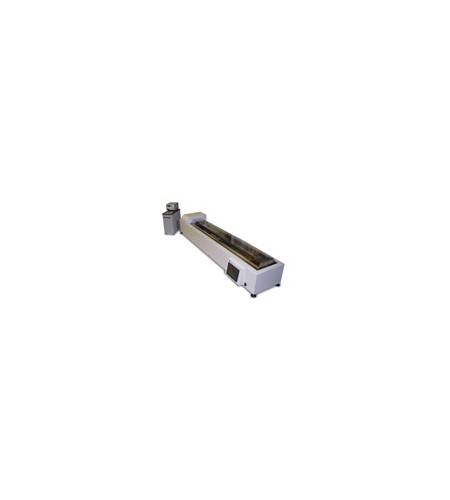

KOEHLER K8006X Ductility and Elastic Recovery of Bituminous Materials
Perhatian!
Spesifikasi KOEHLER K8006X Ductility and Elastic Recovery of Bituminous Materials
• Conforms to ASTM D113, D6084 and related specifications
• Standard and Constant Temperature Models available
• Capable of testing up to 3 samples simultaneously
• 6” LCD Touch Screen Control Panel
• Pre-programmed with Ductility, Recovery, and Custom test methods
• Maximum travel length of 150 cm
• Variable traction speed from 0.25 to 7.0 cm/min
• Constant Temperature model equipped with Lexan Cover for enhanced temperature stability
Specifications
Conforms to the specifications of:
ASTM D113, D5892, D6084, P226; IP 32, 516; DIN 52013, EN 13398; NF T 66-006; AASHTO T 51, T 301; JIS K2207
Capacity: 3 molds with samples
Maximum Travel Length: 150 cm
Standard Traction Speed: 5 cm/min
Variable Traction Speed: 0.25 to 7.0 cm/min
Timer: 1-999 min
Included Accessories
Standard Model:
Standard Mold (3)
Base Plate
Constant Temperature Model:
Circulation Bath
Remote Temperature Probe, 10 ft. length
Connection Tubing
Standard Mold (3)
Base Plate
Lexan Cover
Dimensions wxdxh,in.(cm)
Standard Model: 86.25x 19 x 16” (219.1 x 48.3 x 40.6)
Constant Temperature Model: 86.25 x 19 x 16 (219.1 x 48.3 x 40.6)
Circulation Bath: 15.75 x 8.25 x 22.5” (40 x 21 x 57.1cm)
Net Weight:
Standard Model: 200 lbs (91.7kg
Constant Temperature Model: 217 lbs (98.5 kg)
Circulation Bath: 50 lbs (22.7 kg)
Electrical Requirements
115V 60Hz
230V 50/60Hz
Shipping Information
Standard Model:
Shipping Weight: 350 lbs (159kg)
Dimensions: 923/4x 251/4x 231/4” (235.6 x 64.1 x 59.1cm)
Constant Temperature Model:
Shipping Weight: 368 lbs (167kg)
Dimensions: 923/4x 251/4x 231/4” (235.6 x 64.1 x 59.1cm)
Circulation Bath:
Shipping Weight: 74 lbs (34kg)
Dimensions: 22 x 101/2 x 261/2” (55.9 x 26.7 x 67.3 cm)
