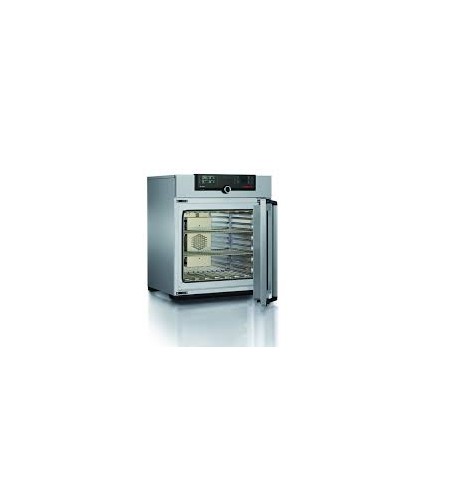

MEMMERT Universal Oven UN450plus
Perhatian!
Spesifikasi MEMMERT Universal Oven UN450plus
Properties
Control of standard components
| ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
|---|---|
| Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Temperature
| Set temperature range in °C | min. 5°C above ambient up to +300°C |
|---|---|
| resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED) | |
Control technology
| Function HeatBALANCE | adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % |
|---|---|
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
| Language setting | German/English/Spanish/French |
| Calibration | three freely selectable temperature values |
| adjustable parameters | temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime |
Ventilation
| natural convection | |
|---|---|
| Fresh air admixture | adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually |
| Vent | vent connection with restrictor flap |
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| Temperature control | mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
|---|---|
| Temperature control | overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display |
| AutoSAFETY | additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature |
| Autodiagnostic system | for fault analysis |
| Alarm | visual and acoustic |
Standard equipment
| Scope of delivery | incl. works calibration certificate for +160°C |
|---|---|
| Door | fully insulated stainless steel doors with 2-point locking (compression door lock) |
| Housing | rear zinc-plated steel |
| Interior | easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Internals | 2 stainless steel grids |
| Installation | on lockable castors |
Stainless steel interior
| Max. loading of chamber: | 300 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 1040 x 720 x 600 mm |
| Volume | 449 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 1224 x 1247 x 784 mm |
Electrical data
| 400 V, 3 phases, 50 Hz / approx. 5800 W |
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 1330 x 1440 x 1050 mm |
| Net weight | approx. 161 kg |
| Gross weight carton | approx. 227 kg |
