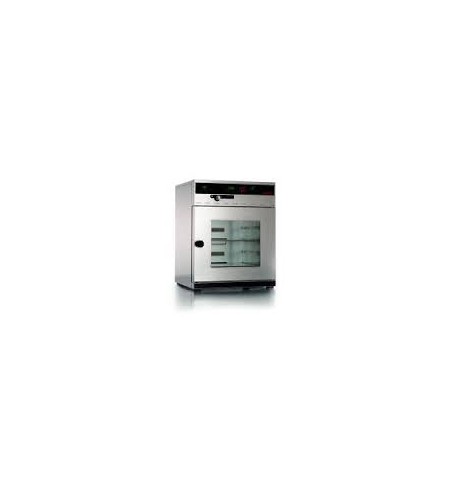

MEMMERT Vacuum oven VO200
Gambar Produk
MEMMERT Vacuum oven VO200
Update Terakhir
02-06-2016
Dilihat Sebanyak
91 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi MEMMERT Vacuum oven VO200
Properties
Control of standard components
| Temperature | temperature measured through 4-wire Pt100 sensor individually for each thermoshelf |
|---|---|
| Vacuum | digital electronic pressure control through solenoid valves |
| Vacuum | setting accuracy 1 mbar |
| Vacuum | adjustment range from 5 mbar to 1100 mbar - digital (LED) |
| Vacuum | rapid air intake for door opening (door is blocked under vacuum ) - programme reactivation at stored values |
| Vacuum | vacuum drying process (vacuum cycles) is continued after power failure |
| Vacuum | one programmable, digitally controlled inlet for air |
| Controller | digital display of all set parameters, such as temperature, weekdays, time, pressure, programe status and set-up values |
| Controller | separate LED-symbol for each thermoshelf in operation |
| Controller | digital display of actual temperature for each thermoshelf individually |
| Timer | digital 7-day programme timer with real time clock, precise minute setting, for one set value or start of ramp operation |
| Timer | integrated timer for tempering and pressure (vacum) profiles of up to 40 ramps, parameters time, pressure and temperature (setpoint dependent) individually adjustable for each segment from 1 min. up to 99 hrs |
Temperature
| min. 5°C above ambient up to +200°C | |
| resolution of display for actual values | 0.1°C up to 99.9°C, 0.5°C from 100°C |
|---|---|
| resolution of display for setpoint values | 0.1°C up to 99.9°C, 0.5°C from 100°C |
| resolution of display/setting accuracy | 0.5°C up to 99.9°C, 1°C from 100°C |
Control technology
| Calibration | three freely selectable temperature and pressure values |
|---|
Communication
| Interface | USB-interface incl. Memmert software "Celsius" for programming and documentation of temperature and pressure |
|---|---|
| Documentation | integrated ring memory as data logger for GLP-conforming long-term documentation of all relevant parameters - 1024 kB |
| Documentation | programme stored in case of power failure |
| Programming | chip-card control incl. 1 MEMoryCard XL with 32 kB storage capacity (max. 40 ramps) |
| Programming | multifunctional programming via menu on 8-digit alphanumeric digital display (language to be chosen via set-up) |
Safety
| Temperature control | additional digitally adjustable, electronic micro-processor overtemperature monitor TWW, protection class 3.1 - (max-value for overtemperature, min-value for undertemperature) |
|---|---|
| Temperature control | automatic overtemperature protection for each thermoshelf following the setpoint-value (MLOP - Multi-Level-Overtemperature-Protection) switching the heating of the shelf off at about 3°C above setpoint value |
| Temperature control | mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
| AutoSAFETY | additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating of the individual shelf is switched off in case of overtemperature |
| Autodiagnostic system | for fault analysis |
Heating concept
| fuzzy-supported MLC (Multi-Level-Controlling) microprocessor controller adapting its performance to the volume (local temperature sensing) for each thermoshelf | |
|---|---|
| 2 connections for thermoshelves in the rear (1st and 2nd level) |
Standard equipment
| Scope of delivery | works calibration certificate for +160°C at 20 mbar pressure for each additionally supplied thermoshelf together with the vacuum oven |
|---|---|
| Door | full-sight glass door, inside spring-loaded, 15 mm thick glazed panel in safety glass, outside with anti-splitter screen |
| Housing | rear zinc-plated steel |
| Interior | hermetically welded stainless steel interior of extremely corrosion-resistant stainless steel, material 1.4404 |
| Interior | additional interior mountings of stainless steel, material 1.4404 (removable for cleaning), consisting of mounting at the sides with guide bars for thermoshelves and on top (diffusor) to avoid turbulences when aerating |
| Interior | all tubings made of stainless steel, material no. 1.4571 |
| Internals | 1 thermoshelf of aluminim, material 3.3547 (ASTM B209) with integrated large-area heating |
Stainless steel interior
| Max. loading of chamber: | 40 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 385 x 305 x 250 mm |
| Volume | 29 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 550 x 600 x 400 mm |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 1200 W |
|---|
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 670 x 810 x 540 mm |
| Net weight | approx. 55 kg |
| Gross weight carton | approx. 76 kg |
