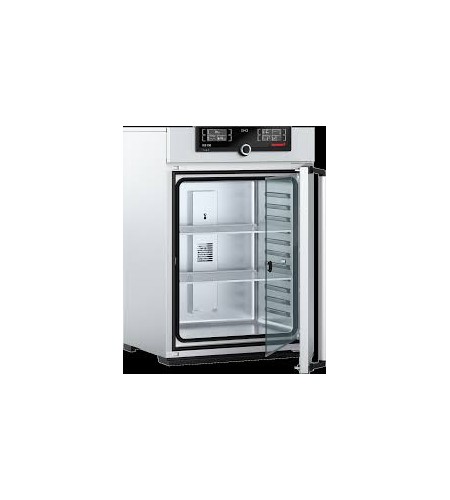

MEMMERT CO2 Incubator ICO150
Perhatian!
Spesifikasi MEMMERT CO2 Incubator ICO150
Properties
Control of standard components
| ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
|---|---|
| Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
| Humidity control | Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93 % rh +/- 2.5 % |
| Setting range active humidity control | 40 to 97 % rh and rh-Off |
| Setting accuracy humidity | 0.5 % rh |
| CO2 control | Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation |
| Adjustment range CO2 | 0 to 20 % CO2 |
| Variation in time CO2 | +/- 0.2 % CO2 |
| Adjustment range O2 | 1 to 20 % O2 |
| Setting accuracy O2 | 0.1 % O2 |
Temperature
| Setting accuracy temperature | 0.1 °C |
|---|---|
| Setting temperature range | +18 to +50 °C |
| Working-temperature range | 5 °C above ambient temperature up to +50 °C Standard sterilisation programme: 60 minutes at 180°C (without removing the sensors) |
Control technology
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
|---|---|
| Language setting | German/English/Spanish/French |
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| Alarm | visual and acoustic |
|---|
Heating concept
| large-area multi-function heating system on four sides with additional door and back heating to avoid condensation |
|---|
Standard equipment
| Scope of delivery | incl. works calibration certificate for +37°C, 5 % CO2, 90 % rh and 10 % O2 (requires option K7 and option T6); Standard equipment for units with O2 control |
|---|---|
| Scope of delivery | incl. works calibration certificate for +37°C, 5 % CO2 and 90 % rh (requires option K7); standard equipment for units with active humidity control |
| Scope of delivery | incl. works calibration certificate (measuring point chamber centre) at +37°C, 5 % CO2 for standard units |
| Internals | 2 pcs stainless steel shelves, perforated |
| Internals | 1 pc stainless steel water dish |
| Door | fully insulated stainless steel door with 2-point locking (compression door lock) |
| Door | inner glass door with opening (8 mm Ø) to take gas sample |
| Housing | rear zinc-plated steel |
| Interior | material 1.4301 (ASTM 304), corrosion resistant |
Stainless steel interior
| Max. loading of chamber: | 120 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 560 x 700 x 400 mm |
| Volume | 156 l |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 2000 W |
|---|---|
| Voltage Electrical load | 115 V, 50/60 Hz approx. 2000 W |
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 800 x 1250 x 800 mm |
| Net weight | approx. 90 kg |
| Gross weight carton | approx. 116 kg |
