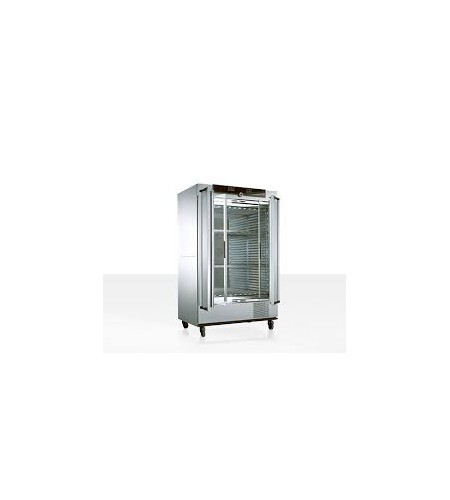

MEMMERT Compressor-cooled incubator ICP750
Perhatian!
Spesifikasi MEMMERT Compressor-cooled incubator ICP750
Properties
Control of standard components
ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
---|---|
Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Temperature
from -12°C up to +60°C (optimum performance of cooling aggregate at an ambient temperature of +16°C up to +32°C) | |
resolution of display for setpoint and actual temperature values | 0.1°C |
---|
Control technology
Function SetpointWAIT | the process time does not start until the set temperature is reached |
---|---|
Language setting | German/English/Spanish/French |
Calibration | three freely selectable temperature values |
adjustable parameters | temperature (Celsius or Fahrenheit), fan speed, programme time, time zones, summertime/wintertime |
Ventilation
Fan | forced air circulation in working chamber adjustable from 10 to 100 % in 10 % steps |
---|
Communication
Documentation | programme stored in case of power failure |
---|---|
Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
Temperature control | mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature |
---|---|
Temperature control | over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display |
AutoSAFETY | additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature |
Autodiagnostic system | for fault analysis |
Alarm | visual and acoustic |
Heating concept
no drying-up of the load caused by the cooling device due to separation of thermal jacket from interior | |
---|---|
energy-saving use of CFC-free cooling/heating system (refrigerant R134a) | |
highly efficient automatic defrosting system | |
air jacket heating system for gentle all-around heating |
Standard equipment
Scope of delivery | incl. works calibration certificate for +10°C and +37°C |
---|---|
Door | inner glass doors |
Door | fully insulated stainless steel doors with 2-point locking (compression door lock) |
Housing | rear zinc-plated steel |
Internals | 2 stainless steel grids |
Installation | on lockable castors |
Stainless steel interior
Max. loading of chamber: | 200 kg |
---|---|
Dimensions W x H x D in mm | w(A) x h(B) x d(C): 1040 x 1200 x 600 mm |
Volume | 749 l |
Textured stainless steel casing
w(D) x h(E) x d(F): 1224 x 1950 x 784 mm |
Electrical data
Voltage Electrical load | 230 V, 50/60 Hz approx. 1200 W |
---|---|
Voltage Electrical load | 115 V, 50/60 Hz approx. 1200 W |
Packing/shipping data
the appliances must be transported upright | |
---|---|
Customs tariff number | 8419 8998 |
Country of origin | Federal Republic of Germany |
WEEE-Reg.-No. | DE 66812464 |
Dimensions approx incl. carton | B x H x T: 1330 x 2150 x 1050 mm |
Net weight | approx. 249 kg |
Gross weight carton | approx. 319 kg |
