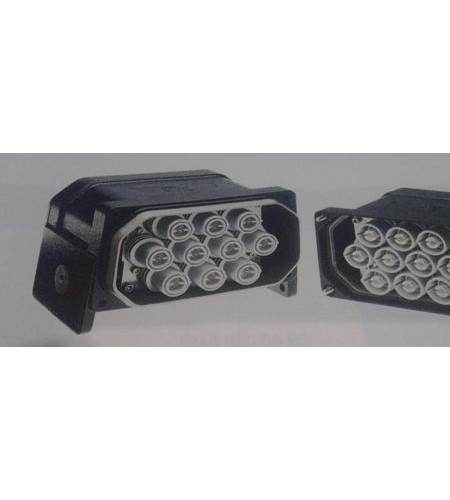

Han 48 Harting connector

Update Terakhir
27-10-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
160 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Han 48 Harting connector

Harting Han 48 HPR


Features
Easy assembly
Good EMC features
Secure termination, easy to control
Vibration resistant acc. to DIN EN 61 373 category1B
Ideal motor /drive connectorfor transportation sector

Technical Characteristics
Han HPR hoods /housing
Material : alumunium die cast, corrosionresistant
Surface
- Top coat   : Epoxy powder paint RAL 9005
Locking element : stainless steel
Tightening torque   : 4Nm
Sealing : NBR
Limiting temperatures : - 40 C ... +125 C
Degree of protection acc.to DIN EN 60 529 for coupled connector : IP 68

Technical characteristics
Inserts

Number of contacs : depending on the frame
Electrical data acc. to EN 61 984  : 350/650 A  4000V  18kV
Pollution degree : 3
Insulation resistance > 10
Material : polyamide
Limiting temperatures : -40  C  ... + 125C
Flammability acc. to UL 94     V 0
Mechanical working life
-mating cycles : > 500

Contact Han HC Modular 350
Material : copper alloy
Surface  : Silver
Contact resistance : < 0.2
Axial Screw termination
Wire gauge      70 .... 185mm2
MCM    : 138 ... 350
Stripping length : 23 ... 25mm
Max cable diameter 26.5  mm

Frame
Tightening torque of the fixing screw material : 2Nm stainless steel

Type
: Han 48 HPR housing, Han 48 HPR cover, Han 48HPR  Frame
