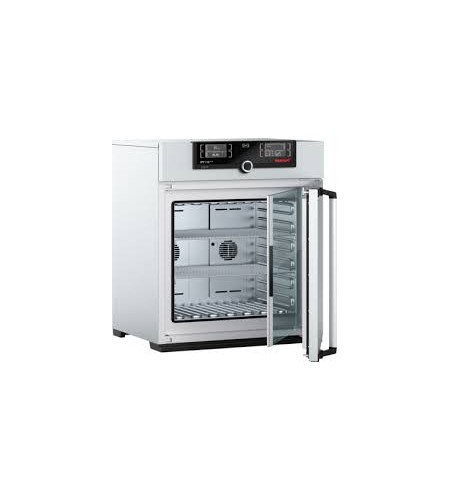

MEMMERT Peltier-cooled incubator IPP260plus
Perhatian!
Spesifikasi MEMMERT Peltier-cooled incubator IPP260plus
Properties
Control of standard components
| ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
|---|---|
| Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Temperature
| from 0°C to +70°C | |
| resolution of display for setpoint and actual temperature values | 0.1°C |
|---|---|
Control technology
| Function HeatBALANCE | adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % |
|---|---|
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
| Language setting | German/English/Spanish/French |
| Calibration | three freely selectable temperature values |
| adjustable parameters | temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime |
Ventilation
| forced ventilation by Peltier fan |
|---|
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| Temperature control | over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display |
|---|---|
| AutoSAFETY | additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature |
| Autodiagnostic system | for fault analysis |
| Alarm | visual and acoustic |
Heating concept
| Heating and cooling performance distribution by individual control of the Peltier elements in the upper and lower row | |
|---|---|
| energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle) | |
| energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle) |
Standard equipment
| Scope of delivery | incl. works calibration certificate for +10°C and +37°C |
|---|---|
| Door | fully insulated stainless steel door with 2-point locking (compression door lock) |
| Door | inner glass door |
| Housing | rear zinc-plated steel |
| Internals | 2 stainless steel grids |
Stainless steel interior
| Max. loading of chamber: | 200 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 640 x 800 x 500 mm |
| Volume | 256 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 824 x 1183 x 774 mm |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 820 W |
|---|---|
| Voltage Electrical load | 115 V, 50/60 Hz approx. 820 W |
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 930 x 1380 x 930 mm |
| Net weight | approx. 114 kg |
| Gross weight carton | approx. 165 kg |
